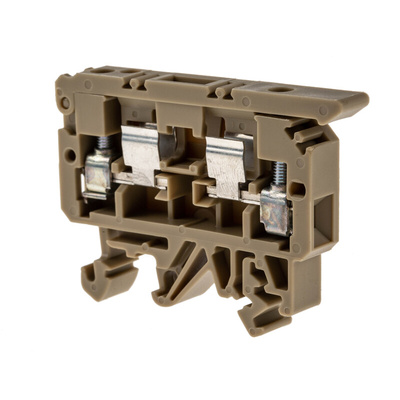

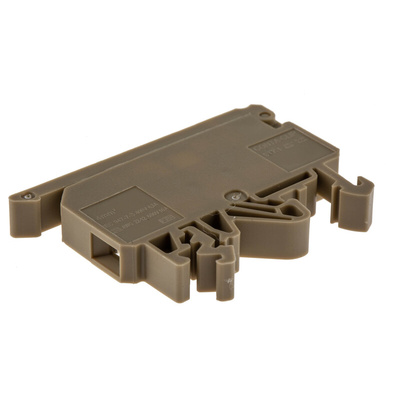

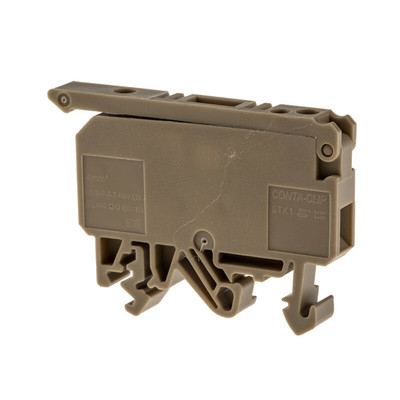

RS PRO Beige Disconnect Terminal Block, 4mm², Single-Level, Screw Termination

RS PRO, 600 V Disconnect Terminal Block, Screw Termination

These fuse-disconnect terminals are used to stop the flow of electricity through a circuit. Unlike regular fused terminal blocks, which you may need to replace regularly, disconnect terminal blocks are a more permanent solution for safely cutting off a circuit.

The disconnect terminals have a hinged lever – with an open and closed position – to hold the fuse. The lever locks when it's in the open position. The blocks are compact for ease of assembly and are compatible with several different mounting rails. The mounting foot fits the TS 15 rail, while the combi-foot snaps on to the TS 35 or TS 32 rails. They can fit a connection cross-section up to 4 mm² and hold 5 x 20 or 5 x 25 fuses, contributing further to their broad range of applications.

These components are UL- and CSA-certified for fire safety. They're commonly used in circuit boards and control panels for industrial electronics.

Features and Benefits

• Beige
• 2190.2 series
• Wire size of 22 → 12 AWG
• 4 mm² Cable CSA
• Single level
• Screw termination method
• Current rating of 6.3 (CSA) A, 6.3 (IEC) A, 16 (UL) A
• Voltage rating of 600 V
• Operating temperature range of -40°C to +105°C

RS PRO

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards
they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.

Note

815-745 end plate cover is suitable for 872-5615.
