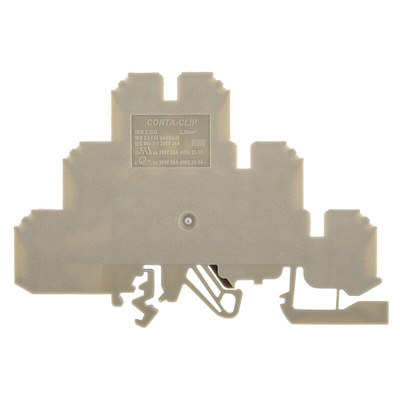

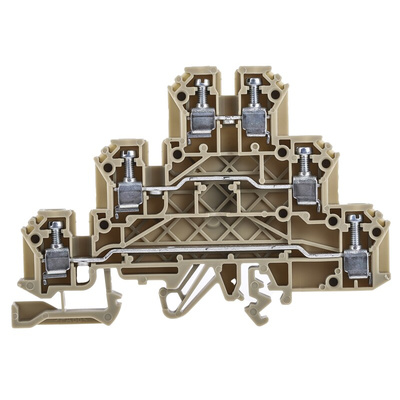

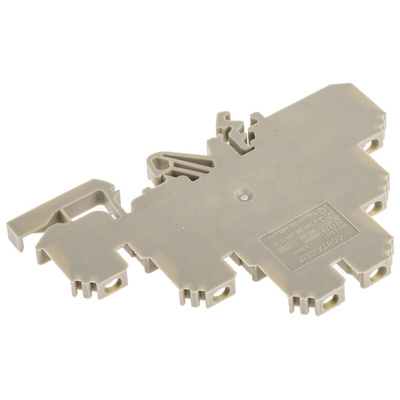

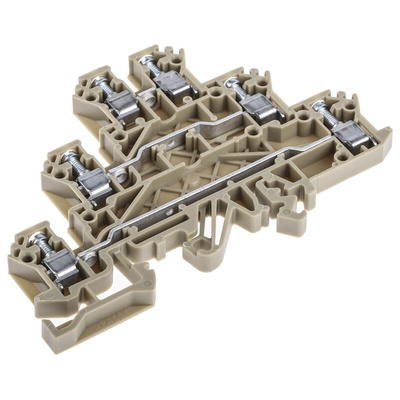

RS PRO Beige Feed Through Terminal Block, Triple-Level, Screw Termination

RS PRO, 300 V Feed Through Terminal Block, Screw Termination

Use this three-level feed through terminal block to connect wires quickly and simply. It has with feet that snap onto DIN rails for easy mounting and dismounting. The multi-level block saves space, simplifies connections and enables you to organise your circuits neatly.

No soldering or wiring is required on this RS PRO terminal block, and colour coding means individual components can be isolated easily. By limiting wire exposure, it also makes your circuits safer and more reliable. It mounts on to TS 32 and TS 35 DIN rails and the screw termination system is particularly suitable for semi-permanent applications. With an operating temperature range of -40°C to +105°C, you can rely on it for most common applications.

The component is made from PA6.6 polyamide material, which has a UL 94-V2 fire-safety certification. You'd find this feed-through terminal block in circuit boards in everyday electronic devices, as well as industrial control panels.

Features and Benefits

• Non-fused feed through terminal block
• Wire size of 22-14 AWG
• Current rating of 20 A (CSA), 20 A (CSAus), 24 A (IEC)
• Voltage rating of 300 V
• Three levels
• Screw termination
• Operating temperature range of -40 °C to +105 °C

RS PRO

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards
they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.

RS PRO Datasheet
