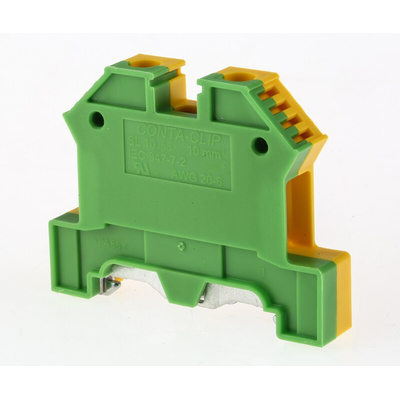

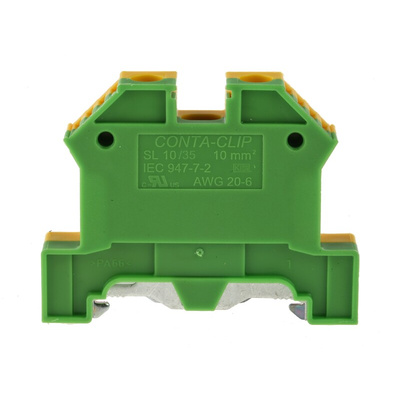

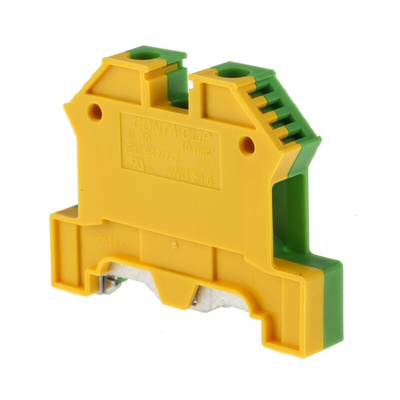

RS PRO Green, Yellow Earth Terminal Block, Single-Level, Screw Termination

RS PRO Green, Yellow Earth Terminal Block, 20 → 6 AWG

Need to make quick and safe connections for the smallest cross-sections? This protective earth terminal from RS PRO uses the Conta-Clip RK screw connection system to achieve very high contact forces in a small space.
A large wire-entry bay helps you to insert the conductors when working in a confined space. The foot can be snapped onto TS 32 and TS 35 DIN rails for quicker assembly. The housing is made from durable polyamide (PA), which meets the 6.6 UL 94-V2 flammability standard, meaning it won't burn for more than 30 seconds. It's colour-coded yellow and green so you can easily identify it as a protective earth terminal.
The terminal can be used at temperatures from -40°C to +105°C, so it's suitable for use in wide range of industrial environments. Earth terminal blocks of this kind are commonly used to protect electrical units or people from electrical or magnetic fields.

Features and Benefits

• Green, yellow colour
• Maximum operating temperature of +105°C
• Minimum operating temperature of -40°C
• Single level
• Screw termination method
• Wire size of 20 to 6 American Wire Gauge (AWG)

RS Pro Datasheet
