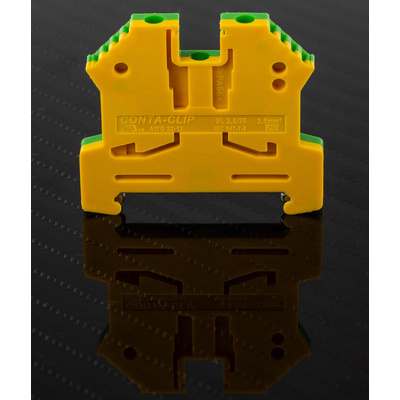

RS PRO Green, Yellow Earth Terminal Block, Single-Level, Screw Termination

RS PRO Earth Terminal Block, Screw Termination

These earth terminal blocks are used to safely ground or earth a current in electrical circuits. They're similar to regular terminal blocks, but with a wire connection to the base of the block to ground/earth the circuit. Using an earth terminal block like this means you don't need to run a wire to the main connection on a breaker or surge protector.

These components make use of the Conta-Clip RK screw connection system, an easy-to-use system that allows for fast and reliable connections. The foot contact of the terminals can be screwed down to either side of the mounting rail for maximum mechanical and electrical safety. They fit the TS 32 and TS 35 DIN rails.

The blocks are made from a PA6.6 polyamide material, which has been certified UL94-V2 for fire safety. Earth terminal blocks like these are commonly used in industrial circuit boards and control panels.

Features and Benefits

• Green, Yellow
• 1056.2 series
• Made of polyamide PA 6.6 (with UL 94-V2 fire safety certification)
• Wire Sizes of 22 → 12 AWG
• Single level
• Screw termination method
• Minimum Operating Temperature of -40°C
• Maximum Operating Temperature of +105°C
