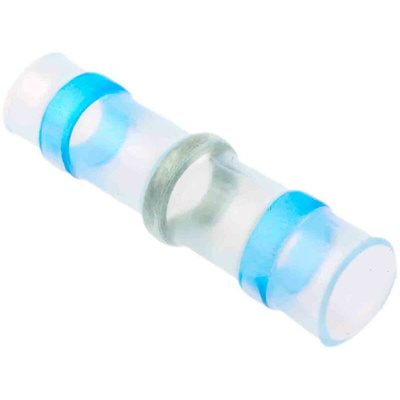

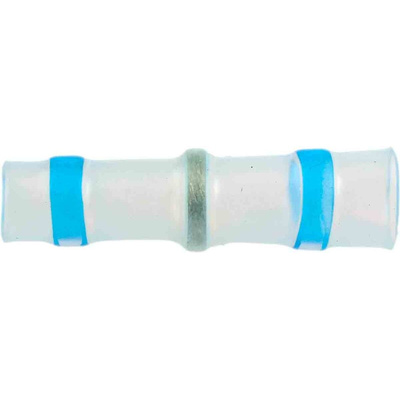

RS PRO Blue Low-Density Polyethylene Solder Sleeve 29.3mm Length 2.3 → 4.5mm Cable Diameter

RS PRO Blue Solder Sleeve 2.3 → 4.5 mm

This 29.3 mm heat-shrinkable solder sleeve from RS PRO protects wire terminations from environmental damage. It offers fast installation without the need for time-consuming termination methods such as hand-soldering or crimping.

The size 2 solder sleeve is made from transparent low-density polyethylene for easy inspection. It comes with a pre-fluxed solder and hot-melt glue at either end, giving you easy control of the soldering process. When you place the sleeve over a wire and apply heat to seal it to another wire, the sleeve shrinks and the glue melts for an insulated, strain-free connection. This product can withstand temperatures as low as -55°C and as high as +125°C.

You can use this solder sleeve to terminate wires and cables ranging from 2.3 mm to 4.5 mm in diameter. Thanks to its tolerance of extreme temperatures and its moisture-resistant hot-melt glue, it offers protection to terminations in a wide range of industrial environments.

Features and Benefits

• Solder sleeve with pre-fluxed solder and hot-melt glue
• Size 2
• Transparent low-density polyethylene material
• Minimum cable diameter of 2.3 mm
• Maximum cable diameter of 4.5 mm
• Length of 29.3 mm
• Dielectric strength of 1 kV
• Minimum operating temperature of -55°C
• Maximum operating temperature of +125°C
• Shrink temperature of +115°C
• Blue in colour

RS PRO

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards
they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.

RS PRO Datasheet
