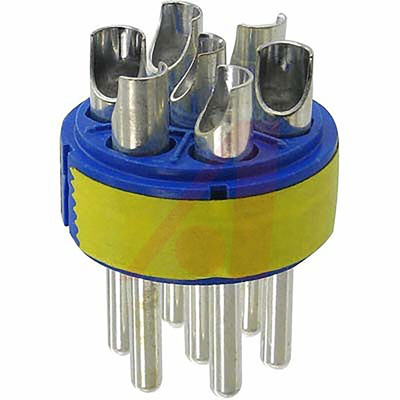

97-24-10P, Amphenol Industrial Male Connector Insert size 24 7 Way for use with 97 Series Standard Cylindrical Connectors, Вкладыш

8731386
Номер производителя: 97-24-10PПроизводитель: Amphenol Industrial
Цена за шт.
18627.00 руб. (С НДС) *

Срок поставки: 4-6 недель

+

* УТОЧНЯЙТЕ ВОЗМОЖНОСТЬ, ЦЕНУ И СРОК ПОСТАВКИ, В СВЯЗИ С ОГРАНИЧЕНИЕМ ЭКСПОРТА ТОВАРОВ ИЗ СТРАН ЕС И ВЕЛИКОБРИТАНИИ

Amphenol 97 Series Connector Inserts - Pin Contacts

Amphenol 97 series connector inserts with male pin contacts. The inserts are available with various arrangements of contact pins to suit various connector shell sizes.

Amphenol - 97 Series

Amphenol's 97 Connector series provide the interconnection solution for low cost, general duty applications. The connectors are widely used in a range of applications such as factory automation, robotics, machine tooling, welding equipment and medical equipment. Shell components are fabricated from high grade aluminium alloy to provide strength andl protection. The series offers a wide range of shell styles. contact patterns and accessory options.

Low cost, general duty applications
Solder or crimp termination
Available in a range of shell styles and insert patterns
Shell components are fabricated from high grade aluminium alloy
Wide selection of connector finishes - cadmium or non-cadmium (environmentally friendly zinc alloy)
Available accessories for both individual wire seal and jacketed cable
Thread coupling
Hard dielectric inserts

Approvals

UL recognized and CSA recognized

Техническая спецификация
pdfAmphenol 97 Series Standard Cylindrical Connector
Для использования с:
97 Серия Стандартные цилиндрические разъемы
Кол-во контактов:
7
Рабочая температура - максимальная:
+125°C
Рабочая температура - минимальная:
-55°C
Размер корпуса:
24
Род:
Male
Тип вставки:
Pin
