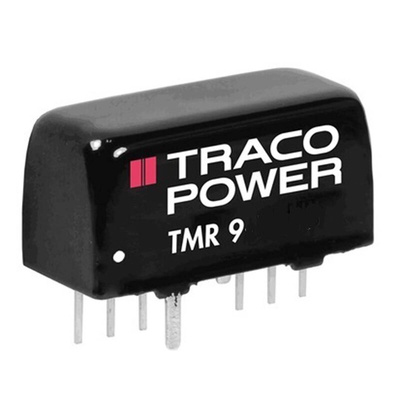

TMR 9-4810, TRACOPOWER TMR 9 DC-DC Converter, 3.3V dc/ 2A Output, 36 → 75 V dc Input, 9W, Through Hole, +85°C Max Temp -40°C, Преобразователь

Traco 9W SIP Fully Regulated Isolated DC-DC Converter - TMR 9 Series

The Tracopower TMR-9 range of isolated DC/DC converters features an excellent efficiency, which along with the use of high grade components, allows a compact SIP-8 package. This isolated DC/DC converter is suited for use in temperature ranges of -40°C to +60°C. The TMR-9 range of DC/DC converters feature a wide 2:1 input voltage range and precisely regulated output voltages. Typical applications of these DC/DC converters are in distributes power architectures in communication and industrial electronics and everywhere where space on the PCB is critical.

Highest power density in SIP package
Wide 2:1 input voltage range
Ultra-compact SIP-8 package
Smallest footprint 9W converter
Full SMD design
Temperature range –40° to +85°C
High efficiency up to 89%
Indefinite short-circuit protection
I/O isolation 1500 VDC
Remote On/Off control
Fully RoHS compliant

Standards

IEC/EN 60950-1, UL 60950-1

Approvals

UL, cULus
