440F-A1308, Allen Bradley Guardmaster Resistor

Closing Caps, Connector & Cable and Terminators

The Safedge can be cut into a number of lengths to guard different points. Closing Caps, Cable Connectors and Terminators (resistors) can be used to seal the Safedge system.

Closing Caps

stock no. 249-6172 is used to close 0110N profiles
stock no. 249-6239 is used to close 1610N profiles

Connector & Cable

stock no. 249-7210 is 1m long

Terminators

stock no. 873-2174 is a 6k resistor (yellow) for series termination
stock no. 873-2178 is a 15k resistor (blue) for parallel termination

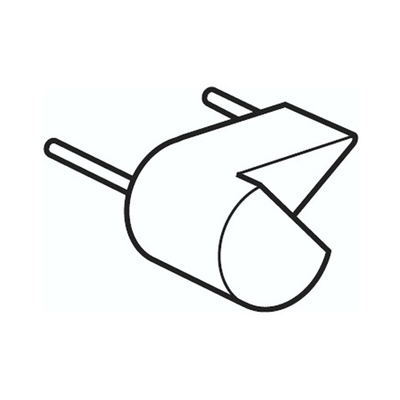

Allen Bradley Guardmaster Resistor For Safedge Profiles, 6kΩ Resistance, 2 Pin - 440F-A1308

Keep your safety devices working efficiently with this resistor from Rockwell Automation's Allen Bradley Guardmaster range. It supplies a resistance of 6kΩ to control the current running through your equipment, ensuring it sends reliable signals to your central controller. As the unit limits the current through an individual sensor, it lets you safely connect several sensors in series to support large systems. It terminates the connections from your safety devices to provide a cable-free way to complete your circuit.

• Restricting current flow keeps system power usage below 6W for energy efficiency
• Distinctive yellow housing for easy identification in busy setups
• Simple two-pin connector mates directly with a sensor for quick assembly
• Works with all sizes of profile sensor for versatility

Standards and Certifications

• UKCA
• CE
• UL

Does this resistor provide ingress protection for my safety device?

No, the resistor doesn't provide ingress protection by itself. If you need to secure your devices against contamination, you should use extra adhesive around the edges of your sensors when installing the resistor to ensure a strong seal.
