440E-A13195, Allen Bradley Guardmaster Rope Pull Switch Cable

Allen Bradley Guardmaster 440E-A13195 Lifeline Rope Tensioner System (LRTS)

Save set-up time for your 440E cable pull emergency stop system with the 440E-A13195 Installation Kit by Allen Bradley Guardmaster.

The 440E-A13195 Rope Tensioning System Installation Kit, 10m (32.8 ft), is designed for use with the 440E Lifelife Rope Pull Switch. It has a Polypropylene covered stainless-steel wire.

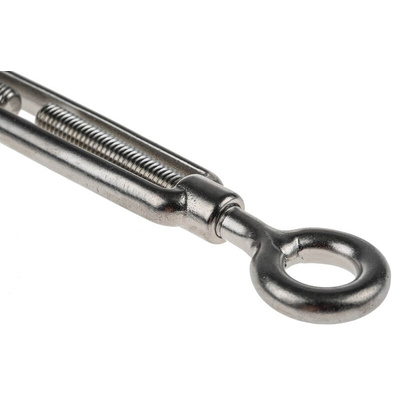

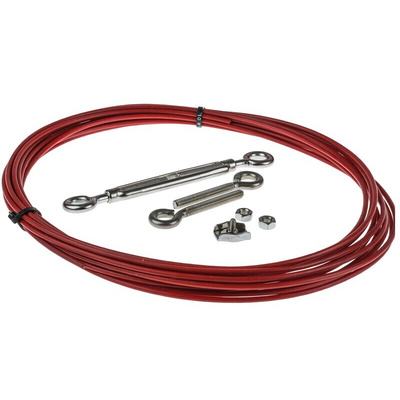

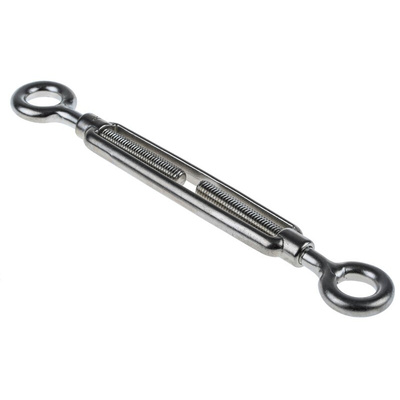

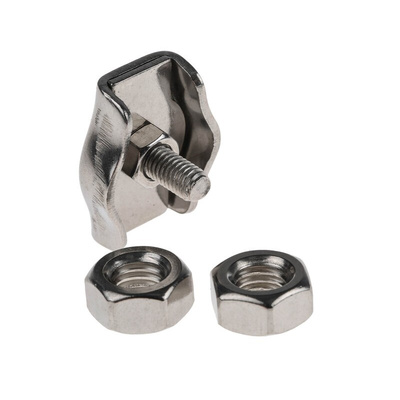

The Lifeline Rope Tensioning System (LRTS) is a unique cable tensioning safety system which is designed specifically to enable simple, fast, and efficient set-up of rope actuated systems. The kit contains: one rope, one turnbuckle tensioner, four thimbles, eight rope grips, eyebolts, nuts and washers.

440E Switches: The Allen Bradley Guardmaster 440E Rope Pull Switches have a steel wire which is connected to latching pull switches, so that when the wire is pulled in any direction along the length the switch is instantly tripped to stop the moving apparatus, minimising risk of injury and risk of damage to equipment.

Features and Benefits:

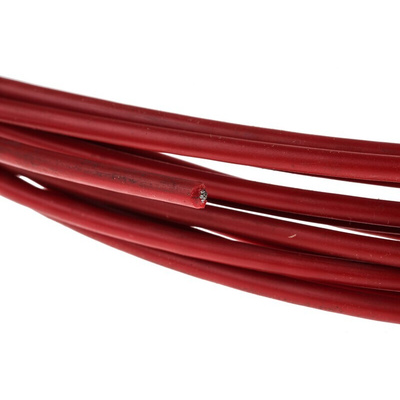

• 10m Polypropylene covered steel cable
• Comes with 4 eye bolts
• No specialist tools required – easy installation
• Tensioning is simple via the setting bolt with the use of an Allen key
• Helps to implement a simple and effective emergency stop rope pull system but can be used for other applications

Certifications:

EN 418
EN 60947-5-5
IEC 60947-5-1
ISO 13850
ISOTR 12100
CE
cULus
TUV
IP66 rated
IP67 rated

What is a cable pull switch?

A cable pull switch, also known as grab wire switches or rope pull switches, are a common type of emergency stop and safeguarding measure. They allow personnel to stop moving machinery anywhere along its length instead of at just one point on the apparatus and can be used over a long distance. This is useful if there is a chance that someone may become entangled in lengthy moving machinery, such as conveyor belts. These appliances are hung by a wire around the machinery and can be operated by pulling the cord. This isolates the circuit and stops the hazard.
