AMP-220-EUR, Beha-Amprobe AMP 220 Clamp Meter, 600A dc, Max Current 600A ac CAT III 600V With UKAS Calibration

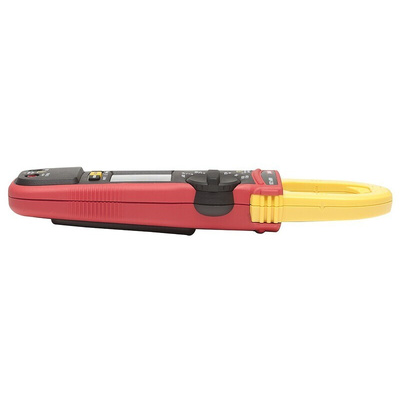

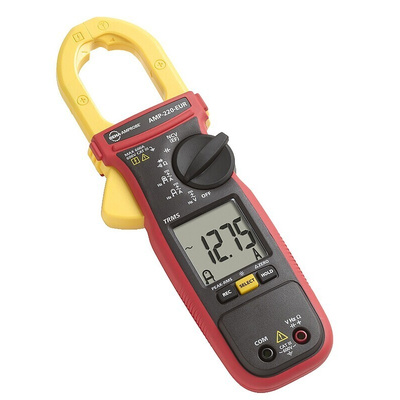

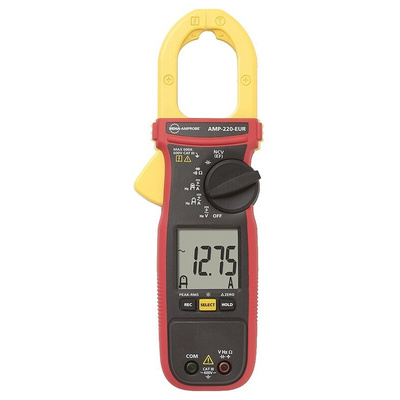

AMP-220-EUR TRMS Clamp Meter

The Beha-Amprobe AMP-220-EUR TRMS clamp meter is a new age device that measures the current up to 600A (AC/DC) and voltage up to 600VAC/DC. It features True-RMS sensing, low pass filters, and fast response processors for quick, error-free measurements. The Amp-Tip function allows for precise measurement of current down to the tenth of an Amp, enabling accurate current measurement of both large and small diameter wires. It includes 2xAAA 1.5V batteries, a carrying hard case, test leads, and a user’s manual. This offers a complete range of innovative measuring functions for modern electrical environments.

Functions include:
Current, voltage, resistance
Capacitance and frequency
Continuity beeper
Low pass filter
Measurement of inrush current
Non-contact voltage detection

Key Features:

True RMS Accuracy - ensuring precise measurement of both sinusoidal and non-sinusoidal waveforms. This capability is crucial for accurate readings in modern, complex electrical environments.
Wide AC/DC Current Range - with an extensive current measurement range of up to 600 Amperes for both AC and DC, the AMP-220 offers versatility for a broad spectrum of applications from basic electrical troubleshooting to advanced industrial tasks.
Advanced Multimeter Functions - integrates a comprehensive multimeter, providing measurements for voltage, resistance, capacitance, and frequency.
Jaw Design for Accessibility - whether you are working with large cables or navigating through complex wiring systems, the ergonomic design ensures a secure and convenient grip.
Backlit Display with Dual Readout - clear visibility in various lighting conditions. Dual display functionality enables simultaneous viewing of current and voltage readings, facilitating real-time analysis without the need for constant toggling between modes.
Safety and Durability - built to comply with the latest industry standards. The rugged housing and durable construction ensure longevity, making it a reliable companion for professionals who demand robustness in their tools.

• Current measurement: 600A max. AC/DC
• Voltage measurement: 600V max. AC/DC
• Jaw opening: 35mm max
• Backlit LCD display
• CAT III 600 V safety rated
• 60kohm resistance measurement with a continuity beeper
• 5.00 Hz to 999.9Hz frequency measurement
• 2500μF capacitance measurement
• Diode test
• An Amp-Tip function allows for precise measurement of current down to the tenth of an Amp, enabling accurate current measurement of both large and small diameter wires
• Automatic range selection
• Minimum, maximum, average recording to capture variations automatically
• Zero adjustments, relative value measurement
• Auto power off
• Data hold
• Operating temperature ranges between 0°C to 40°C

Applications

Petrochemical
Oil and gas
Food and beverage
Pharmaceutical

Certifications

CE
cCSAus
UL listed
IEC/EN 61010-1
IEC/EN 61010-2-033
CAN/CSA C22.2 NO. 61010-1
IEC/EN 61010-2-032
IEC/EN 61010-031
EN 61326-1:2006
CAT III 600 V safety rated

Supplied with

Clamp Meter, 2 AAA 1.5V batteries, carrying hardcase, test leads, user manual
