QTP-OPTIMAL 2x54-58, Osram 54 W Electronic Fluorescent Lighting Ballast, 220 → 240 V, Электронный балласт

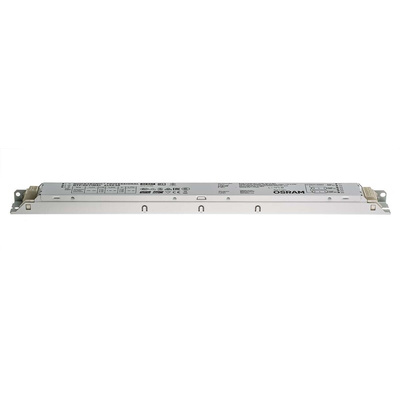

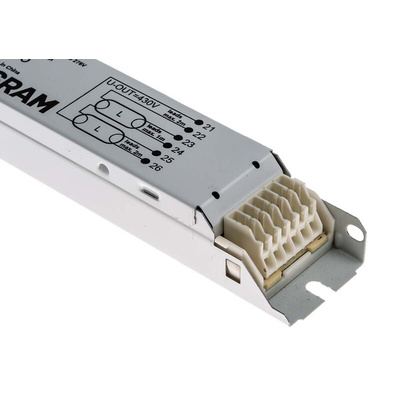

Osram Quicktronic Professional Optimal Lighting Ballast

Introducing the Quicktronic Professional lighting ballast from Osram, this is an electronic control gear (ECG) for fluorescent and compact fluorescent lamps. Using an ECG can guarantee a long lamp life and isn't affected by constant switching on and off. The cut-off technology that it uses can not only prolong the life of the lamp but reduces the cost for maintenance and has very high energy efficiency.

Features and Benefits

Long lamp life

No adverse effect from frequent on/off switching

Automatic restart after lamp replacement

Perfect lamp start for applications with motion sensors

Very high energy efficiency due to cut-off technology

Supply voltage: 220-240V

Line voltage: 198-264V

Line frequency: 0 Hz | 50 Hz | 60 Hz

Lamp start with optimum filament preheating

Lifetime: up to 100,000 hours

Energy Efficiency Index EEI: A2 BAT

Automatic shutdown of defective lamps and at end of life

Typical Applications

Lighting ballasts aid the initial start-up of fluorescent and compact fluorescent lamps, as they can provide it with the correct voltage and running of the lamp. These can be used in:

Offices

Factories

Warehouses

Public buildings

Modernisation of existing systems

Osram Quicktronic Optimal Alternatives

873-5035 - 1 x 18 W Lamps

873-5038 - 2 x 18 W Lamps

873-5032 - 1 x 54 W Lamps

873-5041 - 2 x 54 W Lamps

Standards

EN 61347-2-3, EN 60929

Approvals

VDE/VDE EMC
