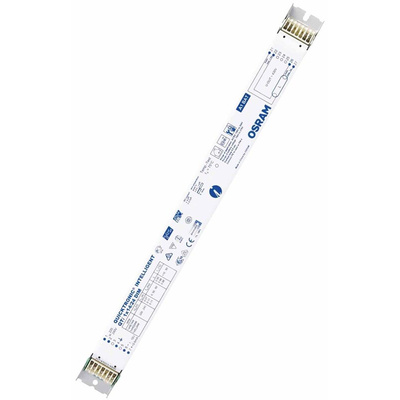

QTi DALI 1x21/39/220-240 DIM, Osram 1 39 W Electronic Compact Fluorescent Lighting Ballast, 220 → 240 V, Электронный балласт

QUICKTRONIC Intelligent DIM Dimmable Electronic Control Gear

The Osram Quicktronic Intelligent DIM T5 is a dimmable electronic control gear for fluorescent lamps. This ECG guarantees the same luminous flux with direct and alternating current. The Quicktronic Intelligent DIM T5 is the perfect electronic ballast for use with motion sensor lighting.
Ideal applications for the Quicktronic-M ECG are in emergency installations, public buildings, open plan offices, corridors and storage rooms. Also suitable for luminaires of protection class I.

Same luminous flux with direct and alternating current
Perfect lamp start for applications with motion sensors
Dimming of amalgam lamps without flickering or reduced lifespan
Very high efficiency thanks to cut-off technology
Automatic restart after lamp replacement
ECGs comply with MINERGIE standard due to very low standby consumption
Configurable emergency power characteristics
Control via DALI
Supply voltage: 220-240 V
Line frequency: 0 Hz | 50 Hz | 60 Hz
Line voltage: 198-264 V
Dimming range: 1-100 % luminous flux
Lamp start: within 0.6 s
Lifetime up to 100,000 hours
Automatic shutdown of defective lamps and at end of life
Energy Efficiency Index EEI: A1 BAT
Overtemperature protection: Thermal management at high tc temperatures
