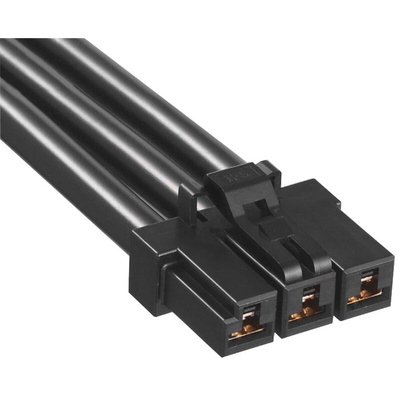

DF60-6S-10.16C, Hirose, DF60 Female Connector Housing, 10.16mm Pitch, 6 Way, 1 Row, Корпус разъема

Hirose 10.16mm DF60 Crimp Socket Housings

DF60 series 10.16mm pitch free hanging crimp socket housings for crimp contacts that are capable of carrying a current of up to 45 A. These DF60 series crimp socket housings have a secure locking mechanism that produces a tactile and audible click when mating and a reliable 5 point contact structure is provided through the use of three independent contact springs. The housings of these DF60 series crimp socket housings are made from black UL94V-0 glass-reinforced PBT with a wall structure between the contacts that prevents short circuiting.
Crimp socket contacts for these crimp socket housings need to be purchased separately, please see stock number 873-5833 typically.
For mating DF60 PCB header connectors see stock number 873-5760 typically

Applications:

• Robotics
• Servers
• Power conditioners
• Servo amplifiers and motors
•Medical devices
• Automotive

Hirose 10.16mm 65A DF60 Series Board to Wire Connectors

DF60-6S-10.16C Drawing

DF60 Series Brochure

EnerBee Datasheet
