DF60-3EP-10.16C, Hirose, DF60 Male Connector Housing, 10.16mm Pitch, 3 Way, 1 Row, Корпус разъема

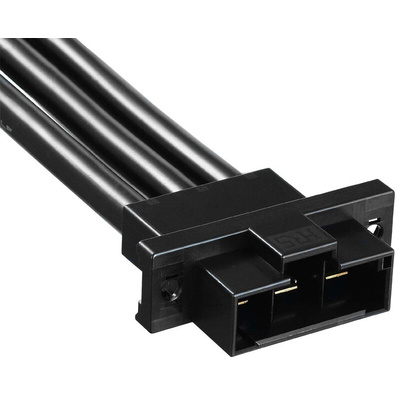

Hirose 10.16mm DF60 In-Line Plug Housings

DF60 series 10.16mm pitch free hanging in-line plug housings that are capable of carrying a current of up to 45 A. These DF60 series in-line plug housings have a secure locking mechanism that produces a tactile and audible click when mating and a reliable 5 point contact structure is provided through the use of three independent contact springs. The housings of these DF60 series in-line plug housings are made from black UL94V-0 glass-reinforced PBT with a wall structure between the contacts that prevents short circuiting.
Typical applications for these DF60 series 10.16mm in-line plug connectors include robotics, servers, power conditioners, servo amplifiers and motors, medical devices and automotive.
Crimp plug contacts for these in-line plug housings need to be purchased separately, please see stock number 873-5836 typically.
For mating DF60 cable mount crimp socket connectors see stock number 873-5785 typically

Hirose 10.16mm 65A DF60 Series Board to Wire Connectors
