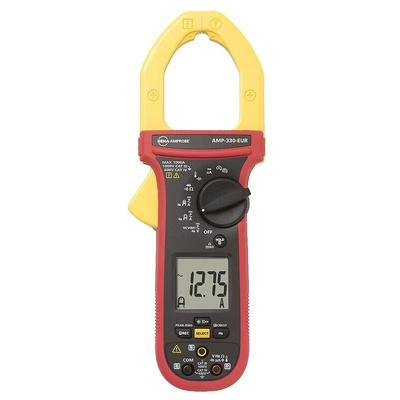

AMP-330-EUR, Beha-Amprobe AMP 330 AC/DC Clamp Meter, 1kA dc, Max Current 1kA ac CAT III 1000 V, CAT IV 600 V

AMP-330-EUR AC/DC 1000 A Clamp Meter Industrial Motor Maintenance

The AMP-330-EUR Clamp Meter offers a complete range of measuring functions for modern industrial environments.

True-RMS
Current measurement: 1000A max. AC/DC
Micro-ampere range: 0-2000 μA DC (Measures in series with cables, not with clamp)
Voltage measurement: 1000V max. AC/DC
Inrush current function
Non-contact voltage detector
Low-pass filter: for variable frequency drives
Automatic ranges
Resistance, capcitance, frequency, temperature measurements (Type K thermocouple)
Min/Max/Average functions
Jaw opening: 51mm max
Backlighted big LCD display
Built-in torch light
Electrical safety: CAT IV 600V, CAT III 1000V

Supplied with

Clamp Meter, 2 AA 1.5V batteries, carrying hardcase, test leads, alligator grips, temperature probe, user manual.

Beha-Amprobe TRMS clamp meter

The Beha-Amprobe TRMS clamp meter is a new age device that measures the current up to 1000A (AC/DC) and voltage up to 1000VAC/DC. It measures current in micro-ampere between 0.0 micro Ampere to 200 micro Ampere. It also measures rotation-R for mains supply and rotation-M for motors It features True-RMS sensing, low pass filters, and fast response processors for quick, error-free measurements. The Amp-Tip function allows for precise measurement of current down to the tenth of an Amp, enabling accurate current measurement of both large and small diameter wires. It includes 2xAAA 1.5V batteries, a carrying hard case, test leads, and a user’s manual. This offers a complete range of innovative measuring functions for modern electrical environments.

Features and Benefits

1000VAC/DC voltage measurement
60kohm resistance measurement with a continuity beeper
5.00Hz to 999.9Hz frequency measurement
2500μF capacitance measurement
Micro-ampere range: from 0 to 2000μA DC (measures in series with cables, not with clamp)
-40°C to 400°C temperature measurements (type K thermocouple)
Diode test
Tests 3-phase sequence and motor rotation to ensure proper connection of a motor to system
An amp-tip function allows for precise measurement of current down to the tenth of an Amp, enabling accurate current measurement of both large and small diameter wires
Non-contact voltage detection
Low-pass filter for variable frequency drives
Automatic range selection
Minimum, maximum, average recording to capture variations automatically
Zero adjustments, relative value measurement
Back lighted big LCD display
CAT IV 600V, CAT III 1000V safety rated
An auto power off
Boasts peak hold and work light
Data hold
Operating temperature ranges between -10°C and 50°C

Applications

Petrochemical
Oil and gas
Food and beverage
Pharmaceutical

Certifications

CE
cCSAus
UL listed
IEC/EN 61010-1
IEC/EN 61010-2-033
CAN/CSA C22.2 NO. 61010-1
IEC/EN 61010-2-032
IEC/EN 61010-031
EN 61326-1:2006
