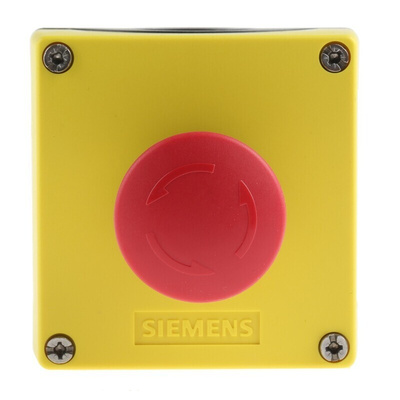

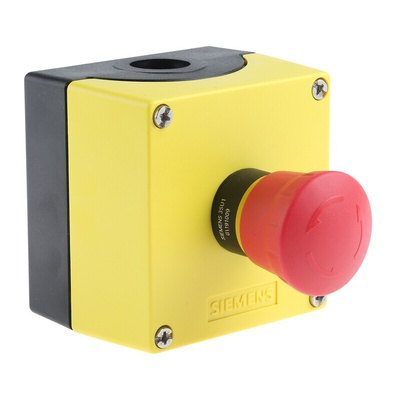

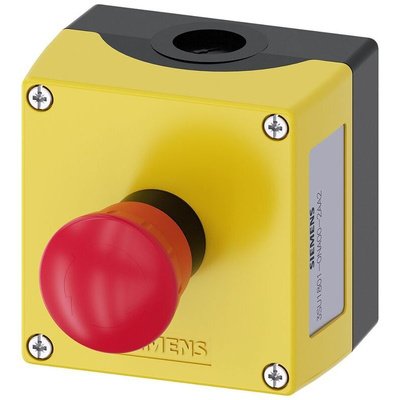

3SU1801-0NA00-2AA2, Siemens 3SU1 Series Twist Release Emergency Stop Push Button, Surface Mount, 1NC, IP66, IP67, IP69K

Siemens Emergency Stop Push Button, Screw Terminals, Plastic Material - SIRIUS ACT Series - 3SU1801-0NA00-2AA2

To protect personnel from machine hazards in your work environment, choose this emergency stop push button from Siemens. As a latching switch, it turns equipment off immediately in the event of a hazard and keeps it off until operating conditions are safe again. It's easy to reset the unit by simply twisting it. A wide operating temperature range between -25°C and +70°C makes this a suitable option for use in challenging industrial applications such as production lines and engineering facilities.

Features & Benefits

• IP69K rating means it's dust-tight and can withstand high-temperature, high-pressure water jets
• Screw terminals for secure electrical connections
• Bright red button and a yellow housing make it easy to spot in an emergency

What are the dimensions of this unit?

This emergency stop push button has compact dimensions of 85 (H) x 85 (W) x 64mm (D), so it takes up minimal space on a control panel or machine.

What's the operating voltage of the push button?

This device has a wide operating voltage range of 5 to 500V AC/DC, making it compatible with a broad range of systems.
