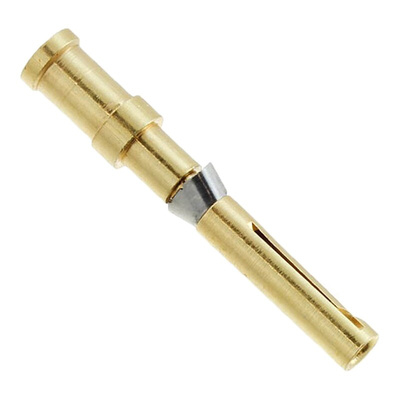

09152006221, HARTING Han D HMC Female 10A Crimp Contact Minimum Wire Size 1.5mm² Maximum Wire Size 1.5mm² for use with HMC Connector

Han D HMC Connector Contacts

Han D HMC connector contacts offered in male and female versions, with wire gauge capacities from 0.14-0.37mm² (AWG 26-22) to 2.5mm² (AWG 14). Han D HMC contacts are suitable for applications up to 250 V / 10 A, with a durable gold plating capable of 10,000 mating cycles, for use with the Han D HMC series of inserts. The Harting Han HMC range has been designed to cater for many industries including medical, test engineering and the industrial applications market with their high demand for connector mating and disconnects.

• HMC gold plating
• Copper alloy base
• 10,000 mating operations
• Rated at 250 V 10 A

Standards

DIN EN 175 301-801, DIN EN 60 664-1, DIN EN 61 984

Approvals

UR, CSA

The 09152006221 from Harting are high quality Female Han D F crimp contacts. The AWG 16 turned contacts have a HMC gold plated surface and are rated at 10 A. Crimp contacts are a solderless method of creating an electrical contact and are ideal for creating a long-lasting and reliable connection between the connector and the cable.

09152006221 Features include:

Conductor cross-section 1.5 mm²
Conductor cross-section AWG 16
Stripping length 8 mm
10 A
Material (contacts) Copper alloy
Mating cycles with other HMC components≥ 10,000

Specifications:
EN 60664-1
IEC 61984

Han HMC Connectors

The hew Harting Han HMC is the first rectangular connector designed to deliver a consistently reliable performance for 10,000 mating cycles or more. The Han HMC connector range optimized for signal and power is ideal for applications in medical, laboratories, engineering testing facilities, where devices and machines are often disconnected and reconnected several times a day. The Han HMC range also suits modular machine construction and automatic tooling systems, without incurring significant wear. Han HMC connectors are enhanced Han industrial connectors, so any device that can use a Han connector can switch to the same size Han HMC without modification.

Harting Han HMC Connectors
