3RT2037-1AP00, Siemens 3RT2 Series Contactor, 230 V ac Coil, 3-Pole, 65 A, 30 kW, 3NO, 400 V ac, Контактор

Contactors – 3RT2 Range

The 3RT2 contactors are climate-proof and are suitable and tested for use worldwide, sizes S00 to S2, up to 37 kW

Size S00, up to 7.5 kW
Size S0, up to 18.5 kW
Size S2, up to 37 kW
Screw connection / Spring Clamp
Impulse voltage resistance 6 kV
Insulation voltage 690 V
Real loss power only 4 W
Designation K according to DIN 40719 (extendable to IEC 204-2) & IEC 750; Q according to DIN EN 61346-2

Note

Screw terminals can only be used with screw terminal overloads and spring terminals can only be used with spring terminal overloads.

Approvals

CE, UL, CSA, CCC

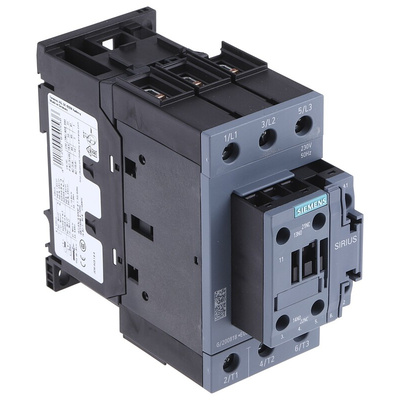

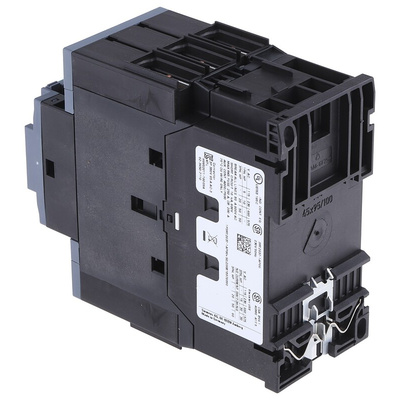

Siemens 3-Phase Contactor, 400V AC, 65A - SIRIUS Innovation Series - 3RT2037-1AP00

This Siemens contactor enables the supply of large electrical current up to 400V AC to motors. It has a modular design that makes transport, manual handling and setup simple. For versatile use, you can install it with screws or snap-on clips with no need for special tools. As the unit has a compact width of 55mm, side by side mounting is also possible in tight settings. Install this contactor as a power relay in motorized mechanical installations.

• Front-facing screw terminals for direct connection to an electrical source
• Shock resistance up to 11.8g/5ms keeps it steady against vibrations
• Ambient temperature range of -25°C to +60°C for safe use in demanding conditions

How long will this contactor last?

This durable contactor can last for up to 10,000,000 switching cycles.

What kind of contacts does this device use?

It has both main and auxiliary contacts that allow for multiple contact configurations. The main contact uses three NO (normally open) contacts for heavy current supply to the motor. The auxiliary contact uses one NO and one NC (normally close) and provides a relay function at a lower current rating.
