09454521561, HARTING Har-Port Series Single-Port RJ45 Coupler

HARTING Har-Port RJ45 Coupler

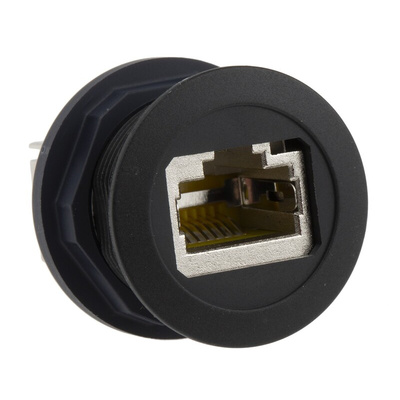

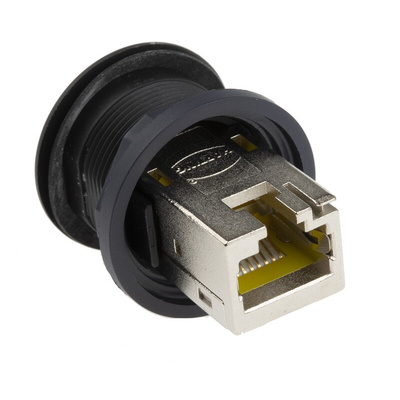

The HARTING Har-Port series RJ45 coupler is a Cat. 6A service interface panel-mount connector. This coupler includes HIFF coupling and a separate Har-Port protection cover is also available. It is quickly and easily assembled onsite and the insertion of the termination block, when assembled onto the cable, into the respective jack, requires no special tooling.
Harting Ha-VIS preLink connector system
Data network technology and Ethernet are becoming important considerations within many industrial and commercial applications, cabling forms the backbone for these technologies must be capable and durable. HARTING Ha-VIS preLink is an entirely new connectivity system that fulfils all of these requirements, while simultaneously combining the demands of profile-specific cabling for the automation market according to ISO/IEC 61918, with the advantages of generic cabling per ISO/IEC 24702 and EN50173-3. HARTING's Ha-VIS preLink is a complete connector solution for Ethernet cabling and a comprehensive series that offers versatile swappable mating profiles, device interfaces and junction boxes. The Ha-VIS preLink termination block is at the heart of this system. It can be wired with total safety in one step using the dedicated preLink crimp tool and is fully interchangeable with all the appropriate Ha-VIS preLink connector heads. The Ha-VIS preLink cabling system covers all industrial applications, railway applications and many building installations amongst others.
Features of the connector system
Swappable mating profiles for versatile and sustainable Ethernet cabling
Ha-VIS preLink assembly tool ensures reliable installation process in one movement
Easy, quick installation in cramped spaces
Pre-assembled cable segments can be swapped out quickly during maintenance and upgrades

Features and Benefits

Minimum 750 mating cycles
Temperature ranges between -25°C and 70°C
Transmission characteristics are Cat. 6 Class E up to 250MHz

Applications

Automation
Energy applications
Industrial application
Railways

Certifications

ANSI/ESD S20.20:2014
BS EN 61340-5-1:2007
IP 20 rated
ISO/IEC 11801

Ha-VIS preLink Connector System

09 45 452 1561 Type Data

09454521561 Datasheet
