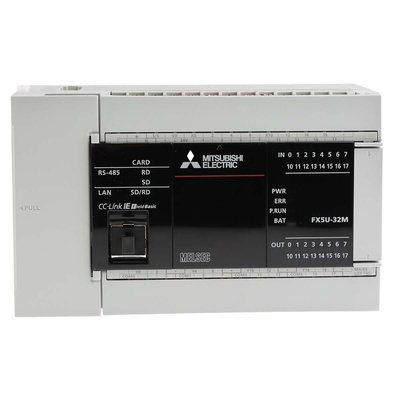

FX5U-32MR/ES, Mitsubishi FX5U Series PLC CPU for Use with MELSEC IQ-F Series IQ Platform-Compatible PLC, Relay, Transistor Output,, ПЛК

Mitsubishi PLC CPU

The Mitsubishi FX5U series iQ platform compatible programmable logic controller (PLC) has 16 digital input (type 24VDC sink/source) and 16 relay/transistor outputs. MELSEC communication protocol (3C/4C Frames) and MELSOFT connection. It has 64k steps program capacity and 16 built-in inputs. The FX5U continues the FX tradition of total flexibility by offering a huge range of new and existing add-on options. It further enhances the built-in functions of Ethernet, analogue I/O, data logging, position control, security, communication and networking functions incorporated as a standard. It will provide users with the ability to specify more powerful systems, but with fewer overall components, saving time and cost.

Features and Benefits

Voltage rating ranges between 100VAC and 240VAC
Expanded input/output area for networks and complex applications
Can be upgraded by combining with expansion modules
Built-in SD card slot
Voltage rating ranges between 100VAC and 240VAC
Run/Stop/Reset switch
Built-in Ethernet port, RS485
Displays the input and output states via LEDs
Integrated real-time clock
Programming software is GX Works3
Operating temperature ranges between 0°C and 55°C

Applications

Industrial automation
Robotics
Automobile industry

Certifications

CUL
EC directive
EMC directive
UL listed
IP10 rated

MELSEC FX5 PLC - Data Sheet

MELSOFT GX Works3 Programming Software - Data Sheet
