DAS50, Sefram DAS 50 Data Acquisition, 4 Channel(s), Ethernet, USB, 1Msps, 14 bit, Логгер

Sefram Data Logger

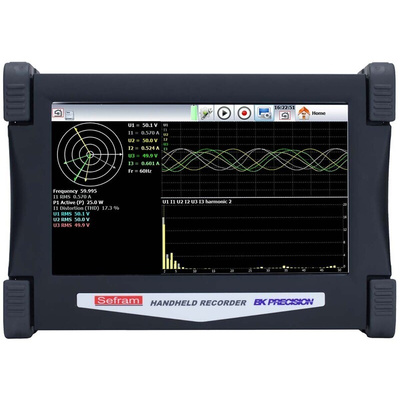

The Sefram 4-channel general-purpose and multifunction recorder is designed for ease of use, simple transfer of records and a wide range of data recording applications. It is equipped with a panoramic 10inch TFT panoramic touch screen user interface that becomes absolutely interactive. The results of measurements (graphs, numerical values) can be recorded directly to internal memory or to a USB stick. Using Sefram software, users can easily transfer records to a computer.

Supplied with
Lithium-ion 10.8V 6.5Ah battery, set of red and black Accessories (cable + alligator clip + banana plug), carrying case, mains adapter, manual (on CD-ROM)

Features and Benefits

16 logical channels
14-bit resolution
Max sampling rate is 1ms (1kHz)
100kHz bandwidth
32Gb internal hard disk
32 word memory

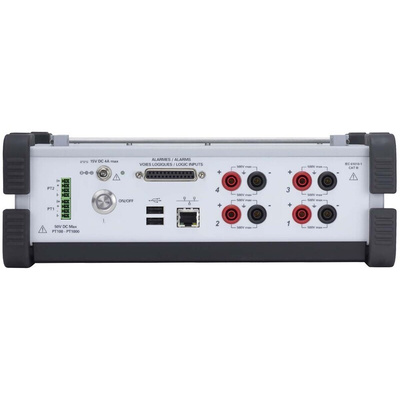

Interfaces 2 x USB, Ethernet
Lithium-ion battery

Applications

Maintenance/failure diagnostic on electrical systems
Voltage, current, temperature recording and monitoring
Power analysis for single phase, dual phase and three phase systems

Certifications

IEC 1010
CAT III 600V

Options

2320453 : WiFi option
7918071 : External 16 isolated logical channel adapter
1259523 : Special cord for logic inputs (banana)

Supplied with
type":"Supplied with",

Included: main adaptor 100/240V, manual (CD-ROM), rugged carrying case, set of red and black cables, aligator clips, quick banana plug

Datasheet DAS50

Manual DAS50

Contains SVHC - 1,3-propanesultone - CAS No. 1120-71-4

UN38.3 Lithium Battery Test Summary
