Lascar EL-21CFR-2-LCD Data Logger for Dew Point, Humidity, Temperature Measurement, Логгер

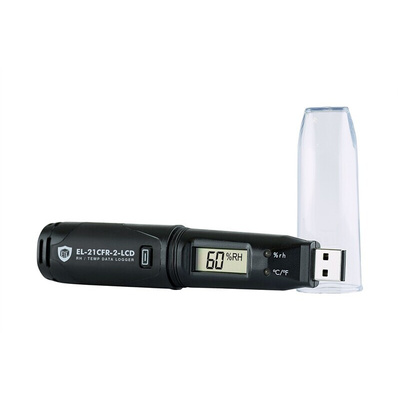

Lascar EL-21CFR-2-LCD Temperature, Humidity & Dew Point Data Logger with LCD Screen

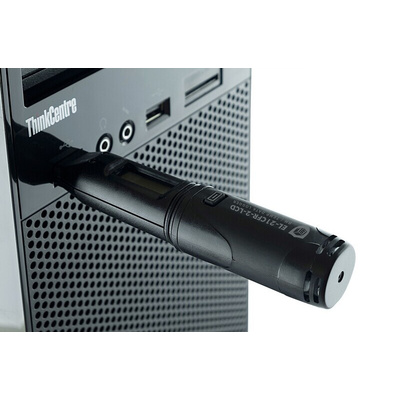

This stand-alone data logger can measure and store more than 16,000 temperature and humidity readings from -35 to +80°C (-31 to +176°F) and 0 to 100% RH range at a resolution of 0.5°C (1°F) and 0.5% RH. The user can easily set up the logger and view downloaded data by plugging the data logger into a PC USB port and using the free EasyLog software. Data, including calculated dew point, can then be graphed, printed and exported to other applications for detailed analysis. The encrypted data has full audit tracking to comply with the requirements of 21CFR Part 11. The high contrast LCD can show a variety of temperature and humidity information. At the touch of a button, the user can cycle between the current temperature and humidity, along with the maximum and minimum stored values for temperature and humidity. The logger is protected against ingress from water and dust to IP67 when the cap is fitted. EL-21CFR-2-LCD applications include: pharmaceutical fridge monitoring; environmental and weather monitoring; agricultural and livestock; food and drink; building and site monitoring; HVAC.

EasyLog 21CFR software available as a free download
-35 to +80°C (-31 to +176°F) and 0 to 100% RH measurement range
Logging rates between 10 seconds and 12 hours
High contrast LCD, with 2 digit temperature and humidity display function
Immediate, delayed and push-to-start logging
Use as part of a 21CFR Part 11 compliant system
Software link to product details - https://www.lascarelectronics.com/software/easylog-21cfr/

Note

EasyLog 21CFR software is not compatible with Mac or Linux

Supplied with

1/2 AA battery and wall mount clip

Lascar Data Loggers

The Lascar EL-USB-2-LCD USB standalone data logger measures and stores over 16,000 temperature and humidity readings between -35°C and 80°C (-31°F to +176°F). It has a 0 to 100% RH range at a resolution of 0.5°C (1°F) and 0.5% RH. At the touch of a button, use the on-board display to cycle between the current, minimum and maximum temperature logs seen during the session for both, temperature and humidity. The user can easily set up the logger and view the downloaded data by plugging the data logger into a PC’s USB port and using the free EasyLog 21CFR software. Data can then be graphed, printed and exported to other applications for a detailed analysis.

Features and Benefits

The measurement ranges between -35°C and 80°C (-31°F and 176°F)
Temperature measurement accuracy is ±0.55°C
Humidity measurement accuracy is ±2.25% RH
Logging rates between 10 seconds and 12 hours
Number of readings per channel is ?????
Immediate and delayed logging start
User-programmable alarm thresholds for both, temperature and humidity
Battery life is up to 3 years
Supplied with a 1/2AA lithium metal battery
High contrast LCD, with two and a half digit temperature and humidity display function
Use as part of a 21CFR Part 11 compliant system
Export to Excel functionality

Applications

Vaccine storage
Cold chain in the pharma industry
Blood and blood components storage
Veterinary

Certifications

IP67 Rated

Contains SVHC - 1,2-dimethoxyethane; ethylene glycol dimethyl ether (EGDME) - CAS No. 110-71-4

EL-21CFR-2-LCD - Datasheet

EL-21CFR-2-LCD - Quick Start Guide

Contains SVHC - 1,2-dimethoxyethane; ethylene glycol dimethyl ether (EGDME) - CAS No. 110-71-4

Lithium Battery Test Document
