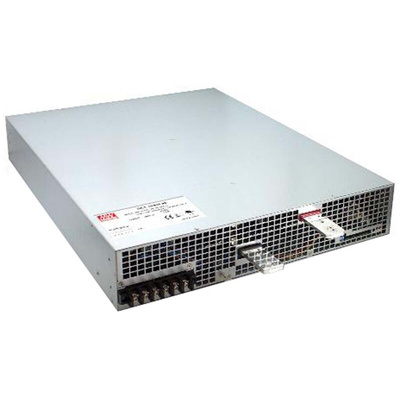

MEAN WELL Switching Power Supply, RST-10000-24, 24V dc, 400A, 9.6kW, 1 Output, 196 → 305V ac Input Voltage, Источник питания

Mean Well RST-1000 Series 1000W AC-DC Enclosed Switch Mode Power Supply

The Mean Well RST-1000 is a series of single output industrial switch mode power supplies, with built-in active PFC function and wide range 3-phase AC input, providing outputs of 24 and 48 Vdc, the most frequently-used DC voltage in the industrial application field. The RST-1000 has an high efficiency of up to 91% and thanks to the built-in fan can provide full load output under 50°C ambient temperature. Other features of this industrial power supply are the remote sense function, the remote ON/OFF control, the 12V/0.1A auxiliary power, the alarm signal output for AC fail, DC ok, fan fail and over temperature protection. Ideal applications of the RST-1000 switch mode power supply are in automation equipments, industrial control equipments, laser engravers, telecommunication systems and any applications which need high operating power.

3-phase AC input
Built-in active PFC function
High efficiency up to 91%
Output Voltage can be trimmed 20∼120% by 1∼6Vdc external control signal
Output current can be trimmed 20∼100% by 1∼5VDC external control signal
Current sharing up to 2 units
Forced air cooling by built-in fan with speed control function
Built-in remote ON/OFF control and remote sense function
Alarm signal output: AC fail, DC OK, fan fail, over temperature protection
Built-in 12V/0.1A auxiliary output for remote control
Short circuit / Over voltage / Over temperature / Overload protections

Standards

UL60950-1, TUV EN60950-1

Approvals

UL/TUV/EN
