MEAN WELL Switching Power Supply, HEP-600-48, 48V dc, 12.5A, 600W, 1 Output, 127 → 431 V dc, 90 → 305 V, Источник питания

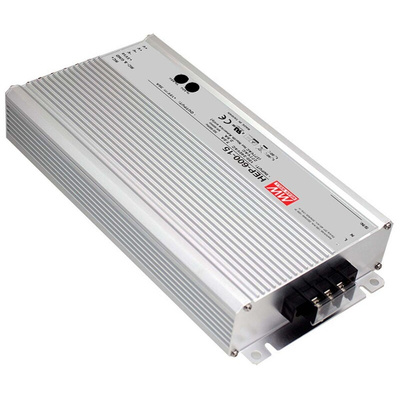

Mean Well HEP-600 Series 600W AC-DC Enclosed Switch Mode Power Supply

The Mean Well HEP-600 is a series of high efficiency, waterproof AC-DC industrial Power supplies. This switch mode power supplies feature wide input range 90 to 264Vac and a no load power consumption below 0.5W. With up to date high performance topology design the HEP-600 possess up to 96% high efficiency, so they can be cooled by free air convection from -40 to +70°C. This Power supply is fully potted by silicone and enclosed with the aluminium case. The HEP-600 switch mode power supplies are suitable for applications humid and industrial environments, outdoor telecommunication equipment, signboards or billboards.

Universal AC input / Full range
Built-in active PFC function
No load power consumption ˂0.5W at remote OFF
High efficiency up to 96%
Fan less design, cooling by free air convection
Output voltage and output current can be adjusted through internal potentiometer
Aluminium case and filling with heat-conducted glue
-40 ∼ +70°C wide operating range
Withstand 5G vibration test
Protections: Short circuit / Over current / Over voltage/ Over temperature
LED indicator for power on

Standards

UL60950-1, TUV EN60950-1

Approvals

UL / CUL / ENEC / CB / CE

Switch Mode - Mean Well Conformal Coated AC/DC Power Supplies

HEP-600 Series Data Sheet
