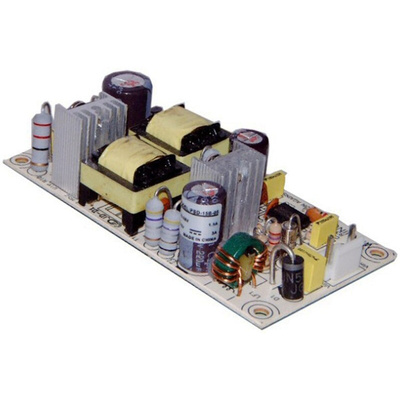

PSD-15B-12, MEAN WELL PSD 15 DC-DC Converter, 12V dc/ 1.25A Output, 18 → 36 V dc Input, 15W, Chassis Mount, +60°C Max Temp, Преобразователь

Mean Well 15W Single Output DC-DC Converters - PSD-15 Series

The MEAN WELL PSD-15 series is a range of high quality, open frame switching power supply. The 15W PCB type DC/DC converters comply with LVD and EMC directives and bear the CE mark. The PSD-05 features 2:1 wide DC input range and 2000Vdc input/output isolation. These DC-DC converters offer short circuit, overload, over-voltage, and reverse polarity protections. The PSD-15 switching power supplies are ideally suited for a wide variety of fields, from general electrical engineering usage, automotive, to battery back-up applications.

• 2:1 wide input range


• Short circuit, overload, over voltage, reverse polarity protection


• Cooling by free air convection


• 100% full load burn-in test


• Fix switching frequency at 67KHz


• Low cost


• High reliability

Approvals

LVD, EMC, CE

Features & Benefits:

• 12 VDC Output Voltage
• 12.5A Output Current
• 78% Input efficiency rating
• 13.8 ∼ 16.2V Over-Voltage protection
• Chassis mounted

PSD-15B-12 Datasheet
