Keysight Technologies U3606B Bench Digital Multimeter, True RMS, 3A ac Max, 3A dc Max, 750V ac Max - RS Calibrated, Мультиметр

Keysight Multimeter/Power Supply U3606B

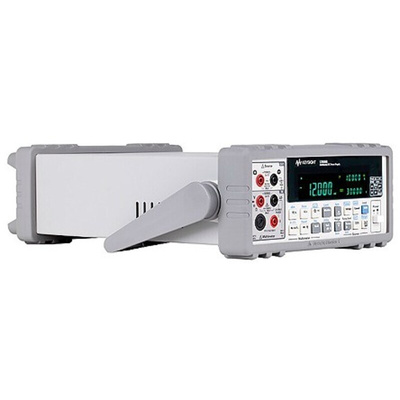

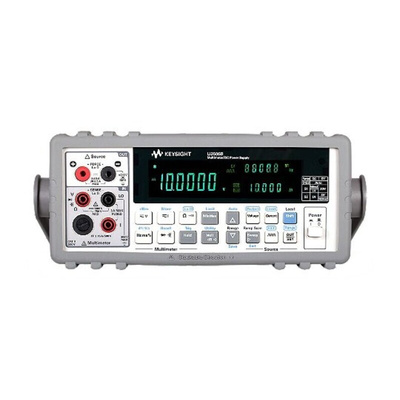

Keysight digital multimeter/power supply U3606B combines a full featured 5.5 digit digital multimeter with a 30W power supply in a single, compact unit. It is capable of powering up a DUT while the instrument user simultaneously measures voltage, current and more.

Measurement capabilities include: sweep function (ramp and scan) to simplify device characterisation for multi-level DC bias testing such as DC motor testing, transistor gain test, relay control and margin tests; low resistance measurement for higher accuracy.

Full-featured 5 digit DMM

• 5 digit, 120,000 counts resolution
• 10 measurement functions and 8 built-in math functions
• 4-wire low resistance measurement with 0.001 mΩ resolution
• 0.025% DC voltage accuracy

Full-featured 30W, DC power supply

• 30V/1 A, 100 mA/30V, 8V/3 A and 1000mV/3 A
• 0.01% + 3mV load regulation
• Over voltage (OVP) and over current (OCP) load protection
• 4.8kHz square-wave generator, auto ramp and scan capability

Other instrument features

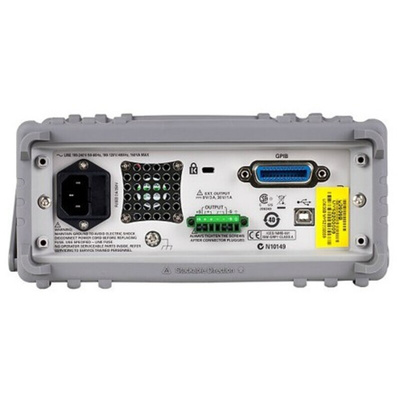

• Built-in GPIB (IEEE-488) and USB 2.0 full speed interface
• SCPI language compatible
• Universal AC input (100V - 240V, 45Hz to 66Hz)
• Kensington lock slot to prevent theft or misplacement

Note

Accessories available separately include: rack mount kit 34190A ( 501-291 ); test leads 34133A ( 764-8696 ); current shunt 34330A ( 501-310 ); Kelvin probe set 11059A ( 692-7147 ); Kelvin clip 11062A ( 702-7914 ); PCI GPID interface card 82350B ( 694-8692 ); PCle GPIB interface card 82351A ( 694-8706 ); USB/GPIB interface card 82357B ( 716-7131 ); cable assemblies GPIB to GPIB 0.5m 10833D ( 501-102 ), 1m 10833A ( 501-099 ), 2m 10833B ( 501-089 ), 4m 10833C ( 694-8712 ), 6m 10833F ( 694-8719 ), 8m 10833G ( 694-8715 ); MSO GPIB adapter 10834A ( 694-8728 ); networked 5-port USB hub E5813A ( 694-8703 ).

Supplied with

Quick start guide, product reference CD, Keysight IO library suite, certificate of calibration, U8201A combo test lead kit, USB 2.0 high-speed Type-A to Type-B cable, AC power cord

Keysight Technologies Multimeter, 20mV to 1000V DC Voltage Measurement Range, 30W Power Supply - U3606B

Looking for an all-in-one solution that juggles voltage, current and resistance measurements? Effectively gauge values with this bench multimeter from Keysight Technologies. It combines a digital measurement device with a 30W power supply to determine electrical parameters while powering a DUT. This brainy unit simplifies calculations, thanks to its 10 measurement types and eight integrated mathematical computations. A Kensington slot lock helps you protect your device against theft and tampering to keep your productivity safe and sound. A basic DC voltage accuracy of 0.025% means you'll get precise results every time.

• Compact dimensions of 334 (L) x 226 (W) x 105mm (H) mean it fits easily on crowded workbenches
• Integrated overvoltage and overcurrent protections help limit safety risks
• Wide operating temperature range between 0°C and +55°C for use in tough conditions

Applications

• Electrical engineering
• Automotive industry
• Aerospace applications
• Defence systems
• Semiconductor testing

Can I link this multimeter to a computer to record and process readings?

Yes, this multitasking unit features built-in GPIB and USB 2.0 full-speed interfaces for ease of data transfer to a computer.
