HBG-60-2100, MEAN WELL LED Driver, 35V Output, 60W Output, 2.1A Output, Constant Current, Драйвер светодиодов

60W Constant Current LED Driver Power Supply for Bay Lighting HBG-60 Series

The Mean Well HBG-60 is a series of LED Power supplies to fulfil the various illumination demands. These LED drivers feature a circular design which fits perfectly in the structure of high bay and low bay lighting fixtures. The HBG-60 comes in a 94V-0 flame retardant plastic enclosure. The structure of this LED power driver is designed to make the HBG-60 series very easy to assemble. Designed with up to date high efficiency topology these LED Drivers possess up to 91% of high efficiency and can be cooled by free air convection from -40°C to +70°C ambient temperature. These constant current LED drivers are suitable for applications such as LED high/low bay lighting, mining lighting, stage lighting and LED spot lighting.

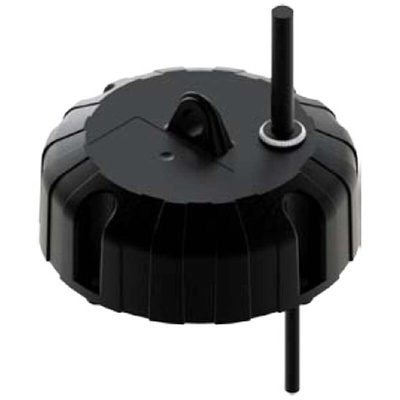

Circular shape design with flame retardant plastic case
Constant current design
91% high efficiency
Wide range input 90 to 295Vac
Built-in active PFC function
Cooling by free air convection
-40 to +70°C working temperature
Short circuit and over temperature protections
Fully isolated plastic case
Class II power unit, no FG

Standards

UL8750, CSA C22.2 No. 250.13-12, ENEC EN61347-1 & EN61347-2-13 independent, EN62384 approved

Approvals

UL, CUL, ENEC, CB, CE
