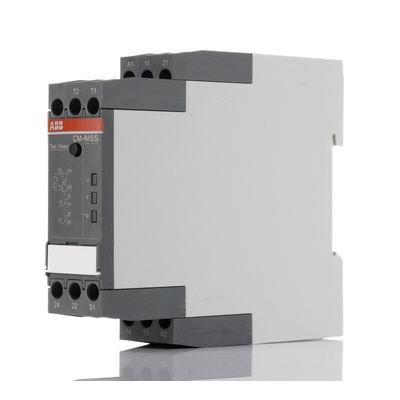

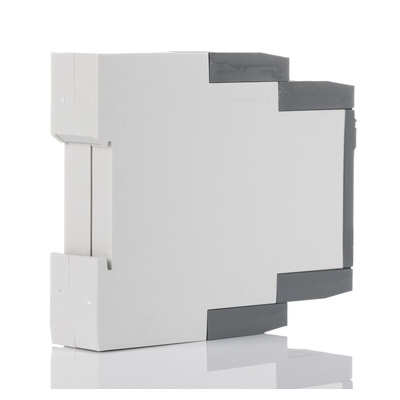

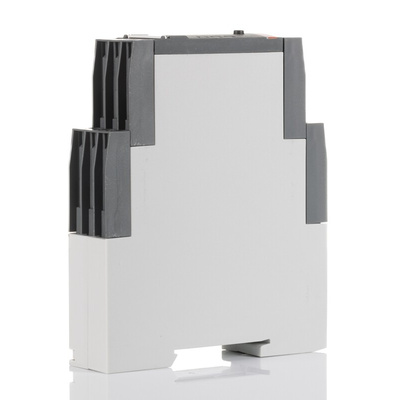

1SVR730712R1200 CM-MSS.41S, ABB Temperature Monitoring Relay, DPDT, DIN Rail, Реле контроля

ABB Monitoring Relay, 24 to 240V AC/DC Rated Control Supply Voltage, Thermistor Motor Protection Type - CM-MSS Series - 1SVR730712R1200 CM-MSS.41S

Make sure your motor doesn't break a sweat in demanding applications by using this monitoring relay from ABB. The device cuts the circuit in your motor when it senses that the equipment's windings are too hot, preventing damage and breakdowns. Thanks to its compact dimensions of just 103.7 (L) x 22.5 (W) x 85.6mm (H), this unit fits snugly into tight work areas. A broad operating temperature range between -25°C and +60°C means it can hold up under harsh conditions.

Features & Benefits

• Clips onto a DIN rail for snappy mounting
• Mechanical durability of 30 million cycles for long-lasting performance
• Light weight of 141g to place minimal strain on your system
• Rated control supply voltage of 24 to 240V AC/DC for versatility

Applications

• HVAC equipment
• Automotive manufacturing
• Power tools
• Lifts and escalators

Does this unit carry an IP rating?

Yes, the unit's terminals have an IP20 rating, which means they're touch-proof and protected against tools and wires larger than 12mm in size.

Thermistor Motor Protection Relay Data Sheet

Selection Table

Brochure - Protection Relays

Instruction Sheet - CM - MSS Series
