RS PRO Right Angle Female 4 way M12 to Unterminated Sensor Actuator Cable, 5m, Кабельная сборка

RS PRO Right Angle M12 to Unterminated Cable assembly, 4 Core 5 m Cable

This 4-core cable assembly from RS PRO is used for transferring data securely in commercial electronics and process control environments. It's often found together with automation and sensor equipment in industrial settings.

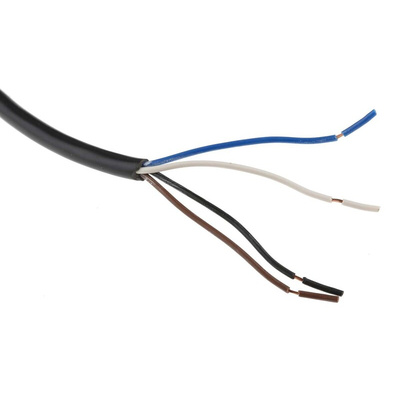

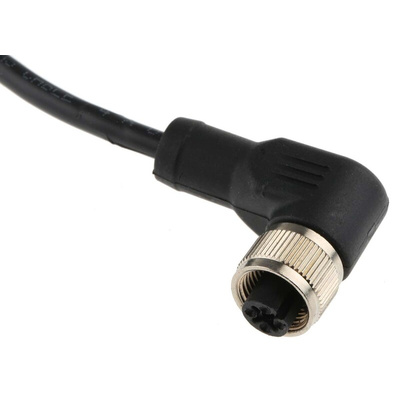

There's a right-angled female M12 connector on one end that slots handily into smaller spaces. The other end is unterminated, so you can fit the right connector for your needs.

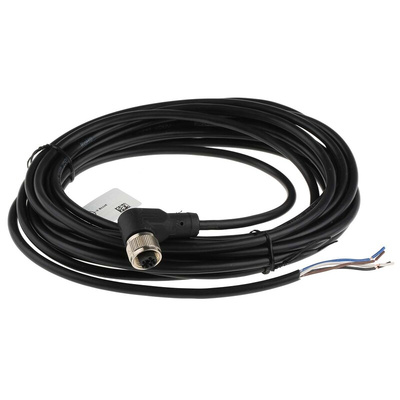

The 5-metre cable comes with a corrosion-resistant, brass nickel-plated coupling to keep it secure, and a polyurethane sheath to protect it from industrial chemicals. It has a neoprene O-ring for sealing out liquids and is rated IP67 for water resistance.

Part of the RS PRO series, this product complies with safe electrostatic discharge standards (ANSI/ESD S20.20:2014 and BS EN 61340-5-1:2007) and is certified as containing only minimal hazardous substances (RoHS). It's safe to use at a temperature range of -25°C to +70°C.

Features and Benefits

• Right-angled M12 connector fits into tight spaces
• Female to unterminated connectors
• Nickel-plated brass coupling nut makes a secure connection and resists corrosion
• High insulation resistance of at least 100 MΩ protects equipment against electrostatic discharge
• Neoprene O-ring keeps out liquids
• 4-core cable
• Length of 5 m
• Outer diameter of 4.8 mm
• Cross-sectional area of 0.34 mm²
• AWG rating of 22
• Unshielded cable
• Polyurethane (PUR) sheath with PVC outer sheath
• Operating temperature range of -25°C to +75˚C
• Voltage rating of 250 V
• IP67 waterproof rating means it can be submerged in one metre of water for 30 mins
• Current rating of 4 A
