RS PRO Right Angle Female 5 way M12 to Unterminated Sensor Actuator Cable, 5m, Кабельная сборка

M12 Single Ended Cable Assembly

Brought to you under the trusted RS Brand, this range of M12 connector cable assemblies are commonly used in sensor and automation equipment. Boasting a high degree of environmental protection, they are ideal for industrial use. Fitted with a secure coupling nut, these RS M12 Connector Cable Assemblies are left un-terminated and partially stripped at one end, and are an ideal solution for when secure and reliable data transference is needed.

Features and Benefits:

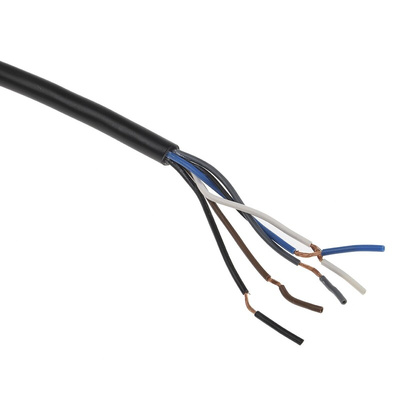

• Wire is un-terminated and partially stripped
• Insulation Resistance >= 100 MΩ
• Neoprene O-Ring
• Brass nickel plated coupling nut

RS PRO Right Angle M12 to Unterminated Cable assembly, 5 Core 5 m Cable

Looking for a secure cable connector to transfer data in industrial environments? This five-core cable assembly from RS PRO is a reliable choice. Commonly used in sensor and automation equipment, it has a right-angled M12 connector to fit into tight spaces.

Its nickel-plated brass coupling secures the connection and resists corrosion, while a neoprene O-ring and polyurethane sheath keep liquids and industrial chemicals out. The cable's other end is unterminated so you can fit the right connector for your application.

This product has been tested for electrostatic discharge safety (ANSI/ESD S20.20:2014 and BS EN 61340-5-1:2007) and contains minimal hazardous substances (RoHS).

The five-metre cable can be used safely at temperatures ranging from -25°C to +70°C. It has an outer diameter of 5.5 mm, a cross-sectional area of 0.34 mm, and a voltage rating of 60 V. It can be used for applications from process control to commercial electronics.

Features and Benefits

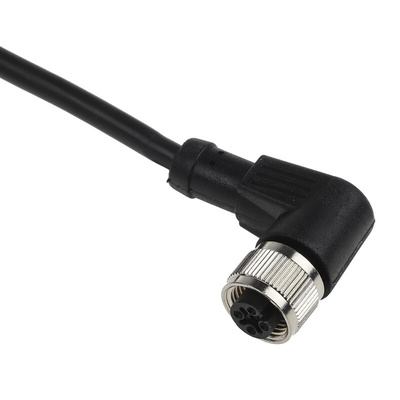

• Right-angled M12 connector fits into tight spaces
• Female to unterminated connectors
• Nickel-plated brass coupling nut makes a secure connection and resists corrosion
• High insulation resistance of at least 100 MΩ protects equipment against electrostatic discharge
• Neoprene O-ring keeps out liquids
• Gold-plated contacts resist corrosion
• 5-core cable
• 5 metres long
• Outer diameter of 5.5 mm
• Cross-sectional area of 0.34 mm²
• AWG rating of 22
• Unshielded cable
• Operating temperature -25°C to +75˚C
• Voltage rating of 60 V
• IP67 waterproof rating means it can be submerged in one metre of water for 30 mins
• Amp rating of 4A

RS PRO

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards
they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.
