RS PRO Right Angle Female 4 way M12 to Unterminated Sensor Actuator Cable, 5m, Кабельная сборка

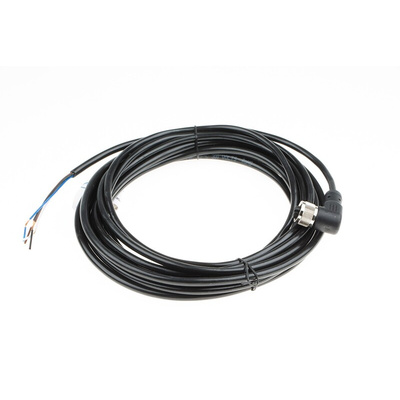

RS PRO Right Angle M12 to Unterminated Cable assembly, 4 Core 5 m Cable

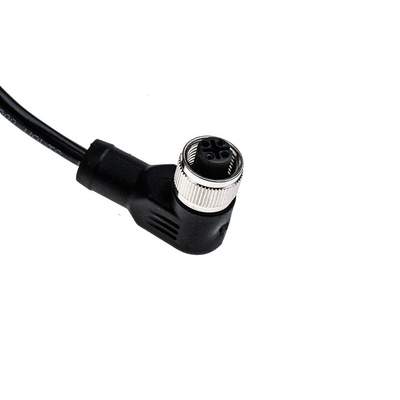

Consider this 4-core cable from trusted range RS PRO when transferring data in industrial settings. These types of wires are commonly used with sensor and automation equipment. This assembly has a right-angled M12 connector to fit where space is limited.

It has a corrosion-resistant, nickel-plated brass coupling to keep the connection secure. There's also a neoprene O-ring and polyurethane sheath that protects against liquids and industrial chemicals. The cable has an unterminated opposite end, so you can attach the right connector for your job.

This product is ANSI/ESD S20.20:2014 and BS EN 61340-5-1:2007 compliant on electrostatic discharge safety and contains minimal hazardous substances (RoHS).

The 5-metre cable operates safely at temperatures ranging from -25°C to +75°C. It has an outer diameter of 4.5 mm, a cross-sectional area of 0.34 mm and a voltage rating of 250 V. Use it for applications from process control to commercial electronics.

Features and Benefits

• Right-angled M12 connector suitable where space is tight
• Female to unterminated connectors
• Corrosion-resistant nickel-plated brass coupling nut that will forge a secure connection
• High insulation resistance of at least 100 MΩ protects equipment against electrostatic discharge
• Neoprene O-ring keeps out liquids
• Gold-plated contacts resist corrosion
• 4-core cable
• Length of 5 m
• Outer diameter of 4.5 mm
• Cross-sectional area of 0.34 mm²
• AWG rating of 22
• Unshielded cable
• Operating temperature -25°C to +75˚C
• Voltage rating of 250 V
• IP67 waterproof rating means it can be submerged in one metre of water for 30 mins
• Amp rating of 4 A
