RS PRO Straight Female 4 way M12 to Unterminated Sensor Actuator Cable, 5m, Кабельная сборка

RS PRO Right Angle M12 to Unterminated Cable assembly, 4 Core 5 m Cable

This 4-core cable assembly from RS PRO is a dependable choice when you want to transfer data securely. Commonly used with automation and sensor equipment, it's fitted with a right-angled M12 connector to fit where space is limited.

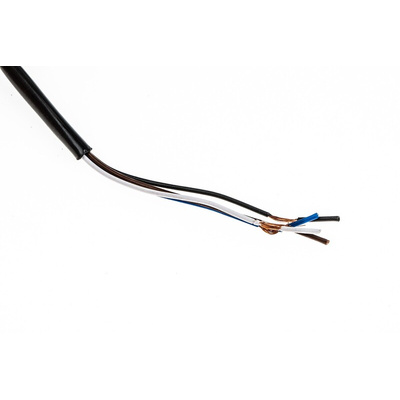

A neoprene O-ring and polyurethane sheath shield it from liquids and industrial chemicals. One end is unterminated, so you can attach an appropriate connector. It has a nickel-plated brass coupling to achieve a tight connection that is corrosion-resistant.

This product is RoHS compliant so it contains minimal hazardous substances. It has also been tested for electrostatic discharge safety (ANSI/ESD S20.20:2014 and BS EN 61340-5-1:2007).

You can use this 5-metre cable safely at temperatures ranging from -25°C to +75°C. It's ideal for applications like process control and commercial electronics. It has an outer diameter of 4.9 mm, a cross-sectional area of 0.25 mm and a voltage rating of 250 V.

Features and Benefits

• Right-angled M12 connector fits into tight spaces
• Female to unterminated connectors
• Nickel-plated brass coupling nut for a secure connection and corrosion resistance
• High insulation resistance of at least 100 MΩ protects equipment against electrostatic discharge
• Neoprene O-ring keeps out liquids
• Gold-plated contacts resist corrosion
• 4-core cable
• Length of 5 m
• Outer diameter of 4.9 mm
• Cross-sectional area of 0.25 mm²
• AWG rating of 24
• Unshielded cable
• Operating temperature -25°C to +75˚C
• Voltage rating of 250 V
• IP67 waterproof rating means it's waterproof to one metre of water for 30 mins
• Amp rating of 4 A
