RS PRO Straight Female 4 way M12 to Unterminated Sensor Actuator Cable, 5m, Кабельная сборка

RS PRO Straight M12 to Unterminated Cable assembly, 4 Core 5 m Cable

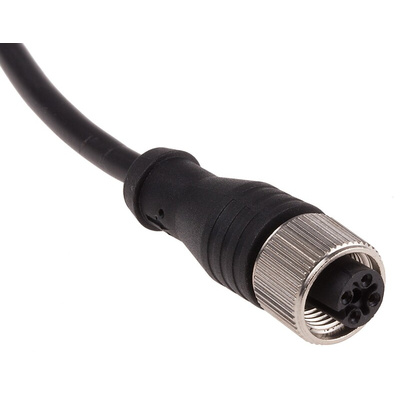

This 4-core cable assembly from RS PRO ensures secure data transfer in process control environments and commercial electronic settings. Suitable for industrial applications, it has a straight M12 connector at one end. The other end is unterminated, so you can fit the right connector for your application.

The 5-metre cable has a polyurethane sheath to protect it from industrial chemicals and a neoprene O-ring for sealing out liquids. There's also a corrosion-resistant, nickel-plated brass coupling nut to keep the connection secure.

You can use this product safely at temperatures ranging from -25°C to +70°C. It has a current rating of 4 amps and a voltage rating of 250 V.

As part of the RS PRO range, this cable has been tested for reliability and safety. It complies with ANSI/ESD S20.20:2014 and BS EN 61340-5-1:2007 as safe from electrostatic discharge and is RoHS-compliant as containing minimal hazardous substances.

Features and Benefits

• Straight M12 connector (female socket)
• Wire is partially stripped and unterminated at one end
• Nickel-plated brass coupling nut makes a secure connection and resists corrosion
• High insulation resistance of at least 100 MΩ protects equipment against electrostatic discharge
• Neoprene O-ring keeps out liquids
• 4-core cable
• Length of 5 m
• Outer diameter of 4.8 mm
• Cross-sectional area of 0.25 mm²
• AWG rating of 24
• Unshielded cable
• Polyurethane (PUR) sheath
• Operating temperature range of -25°C to +75˚C
• Voltage rating of 250 V
• IP67 waterproof rating means it can be submerged in one metre of water for 30 mins
• Current rating of 4 A

RS PRO

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards
they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.
