RS PRO Right Angle Female 4 way M12 to Straight Male 4 way M12 Sensor Actuator Cable, 5m, Кабельная сборка

RS PRO Right Angle M12 to Straight M12 Cable assembly, 4 Core 5 m Cable

This sturdy 4-core cable assembly from RS PRO is well-suited to both commercial electronics and process control applications. It's used primarily in industrial settings.

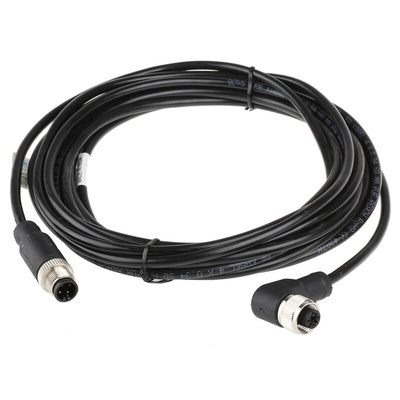

There's a straight M12 connector plug at one end of this 5-metre cable and a right-angled M12 connector socket at the other. Both the plug and socket come with a brass nickel-plated coupling nut that not only protects the cable against vibration but is also corrosion-resistant.

The inside of this cable is well-protected against liquids and spills thanks to a robust neoprene O-ring. It's also fitted with a tough polyurethane (PUR) jacket that's resistant to a range of industrial chemicals.

The cable has an operating temperature range from -25°C to +70°C and a voltage rating of 250 V. It complies with the electrostatic discharge control standards ANSI/ESD S20.20:2014 and BS EN 61340-5-1:2007 and meets EU requirements on the use of hazardous substances (RoHS).

Features and Benefits

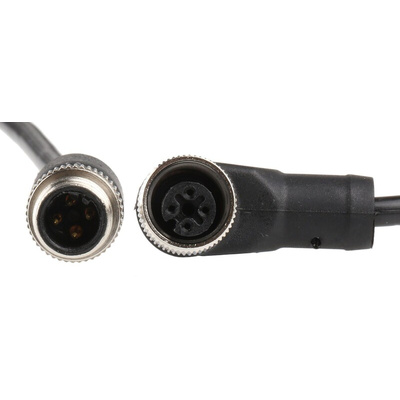

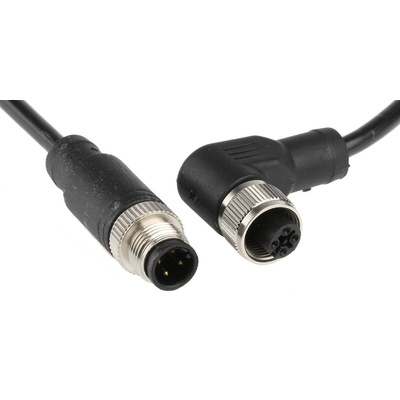

• One right angle M12 connector and one straight connector
• One socket (female) and one plug (male) connector
• High insulation resistance of at least 100 MΩ protects equipment against electrostatic discharge
• Neoprene O-ring keeps out liquids
• Nickel-plated brass coupling nut secures the connection and resists corrosion
• Four contacts on each of the two connectors
• Multicore cable
• 4-core cable
• Length of 5 m
• Outer diameter of 4.9 mm
• Cross-sectional area of 0.34 mm²
• AWG rating of 22
• Unshielded cable
• Operating temperature range from -25°C to +75˚C
• Voltage rating of 250 V
• IP67 waterproof rating means it can be submerged in a metre of water for 30 mins
• Amp rating of 4 A
• Polyurethane PUR outer sheath

RS PRO

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards
they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.
