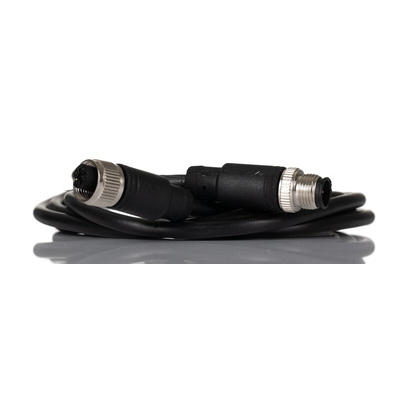

RS PRO Straight Female 5 way M12 to Straight Male 5 way M12 Sensor Actuator Cable, 2m, Кабельная сборка

RS PRO Straight M12 to Straight M12 Cable assembly, 5 Core 2 m Cable

Commonly used in sensor and automation equipment to transmit data, this 5-core cable assembly comes with two secure straight M12 connectors. One end has a plug connector, the other a socket. It's from our trusted RS PRO range.

The connectors provide a secure connection and are corrosion-resistant, thanks to their nickel-plated brass coupling nut. They have a neoprene O-ring seal to keep liquids out.

It's been tested to ensure it won't damage equipment through electrostatic discharge (ANSI/ESD S20.20:2014 and BS EN 61340-5-1:2007). An RoHS compliance certificate verifies that it contains minimal hazardous substances (RoHS). Sheathed in polyurethane (PUR), the cable will also withstand various industrial chemicals.

This 2-metre cable can be used safely from -25°C to +75°C. It has an outer diameter of 5.5 mm, a cross-sectional area of 0.34 mm and a voltage rating of 60 V. It's used in applications such as process control and commercial electronics.

Features and Benefits

• Straight M12 connectors hold fast against vibration

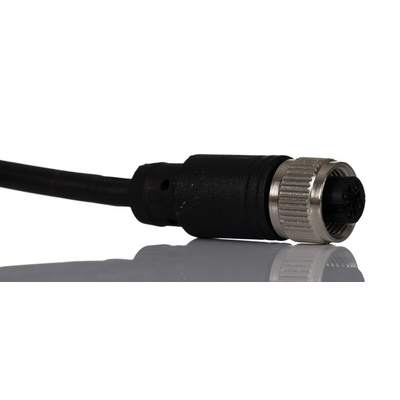

• One socket (female) and one plug (male) connector
• High insulation resistance of at least 100 MΩ protects equipment against electrostatic discharge
• Neoprene o-ring provides a seal against liquid penetration
• Nickel-plated brass coupling nut secures the connection and resists corrosion
• Gold-plated contacts resist corrosion
• 5-core cable
• Length of 2 m
• Outer diameter of 5.5 mm
• Cross-sectional area of 0.34 mm²
• AWG rating of 22
• Unshielded cable
• Operating temperature -25°C to +75˚C
• Voltage rating of 60 V
• IP67 waterproof rating so it can be submerged in a metre of water for 30 mins
• Amp rating of 4 A

RS PRO

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards
they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.
