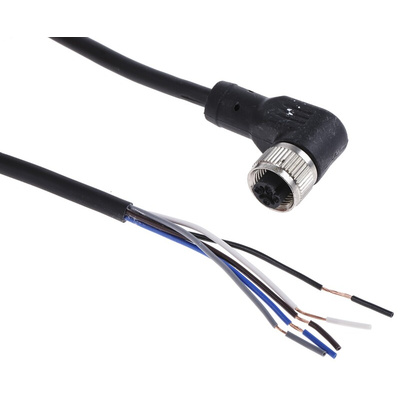

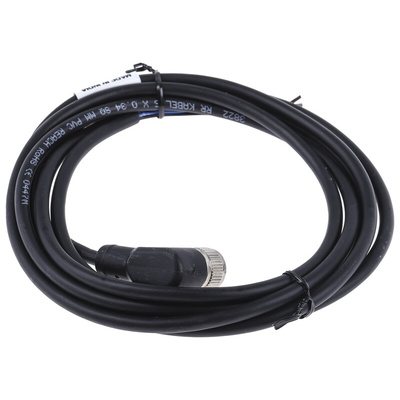

RS PRO Right Angle Female 5 way M12 to Unterminated Sensor Actuator Cable, 2m, Кабельная сборка

RS PRO Right Angle M12 to Unterminated Cable Assembly, 5 Cores, 2 m

Use this M12 cable assembly from RS PRO to link up electronic components. It's simple to customise as one end of the cable is unterminated and partially stripped, so you can adapt it to suit the needs of different machinery or equipment.


The other end of the cable is terminated with a highly conductive brass coupling nut. This type of connection ensures more efficient data transfer. The polyvinyl chloride (PVC) sheath protects the wires from corrosion, chemical damage and weathering, so you won't need to worry about replacing your cable frequently.


The cable's contacts are nickel-plated to help them resist rust and corrosion for a longer-lasting connection. It's two-metres long, making it easier to link components at a distance. It's a reliable cable for applications where you need a secure and trustworthy connection.

Features and Benefits

• American Wire Gauge size of 22 AWG


• Multicore cable shape


• Connector A is a right-angle M12 female socket


• Connector B is unterminated


• Five contacts


• Cross-sectional area of 0.34 mm²


• Current rating of 4 A


• Ingress Protection (IP) rating of IP67 (dust-tight and sealed against medium water jets)


• Length of 2 m


• Five cores


• Operating temperature range of -25°C to +75°C


• Outer diameter of 5.5 mm


• Polyvinyl chloride (PVC) outer sheath material


• Black sheath colour


• Polyurethane (PUR) sheath material


• Unshielded


• Voltage rating of 60 V
