RS PRO Right Angle Female 4 way M12 to Unterminated Sensor Actuator Cable, 2m, Кабельная сборка

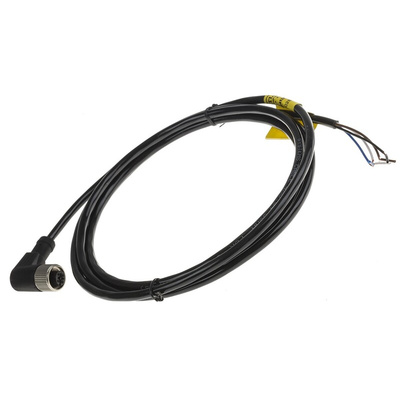

RS PRO Right Angle M12 to Unterminated Cable Assembly, 4 Cores, 2 m

Use this RS PRO M12 cable assembly to link your electronic components. It's quick and easy to customise to suit the needs of different machinery or equipment, as one end of the cable is unterminated and partially stripped.


The cable's other end is terminated with a highly conductive brass coupling nut for more efficient data transference. You won't need to replace your cable frequently as the polyvinyl chloride (PVC) sheath protects the cable from corrosion, chemical damage and weathering.


For a long-lasting connection, the cable's contacts are nickel-plated for resistance to rust and corrosion. The cable can link components at a distance thanks to its 2 m length. Use this cable when you need a reliable and secure connection.

Features and Benefits

• American Wire Gauge size of 22 AWG


• Multicore cable shape


• Connector A is a right-angle M12 female socket


• Connector B is unterminated


• Four contacts


• Cross-sectional area of 0.34 mm²


• Current rating of 4 A


• Ingress Protection (IP) rating of IP67 (dust-tight and sealed against medium water jets)


• Length of 2 m


• Four cores


• Operating temperature range of -25°C to +75°C


• Outer diameter of 4.5 mm


• Polyvinyl chloride (PVC) outer sheath material


• Black sheath colour


• Polyurethane (PUR) sheath material


• Unshielded


• Voltage rating of 250 V
