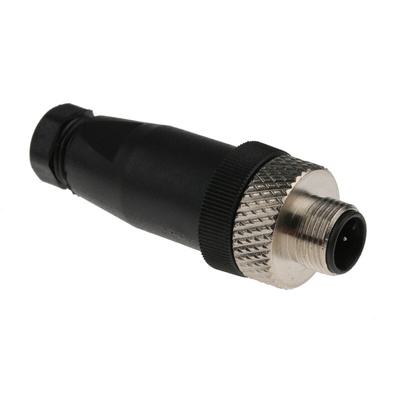

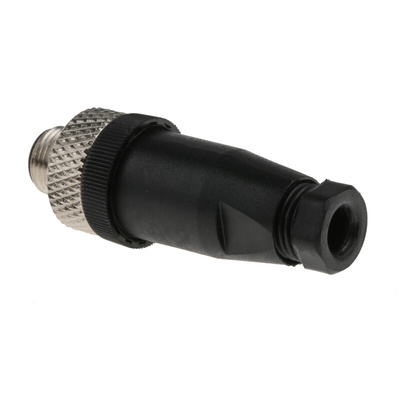

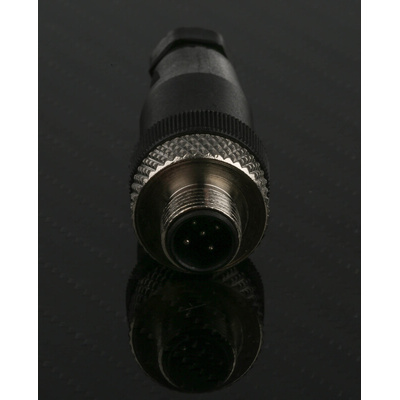

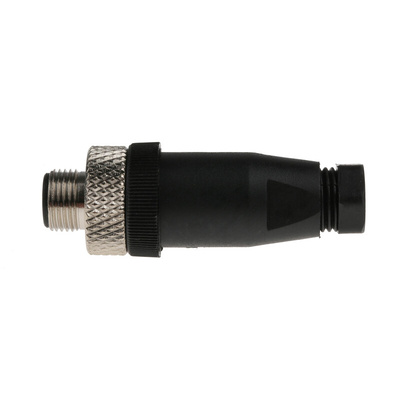

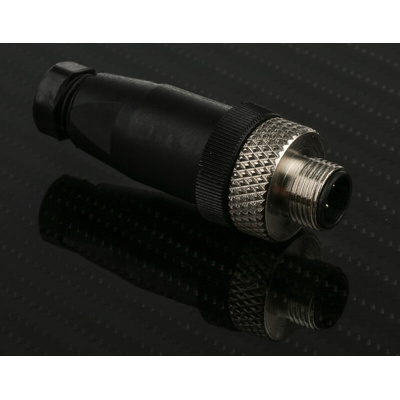

RS PRO Circular Connector, 5 Contacts, Cable Mount, M12 Connector, Plug, Male, IP67, Разъем

RS PRO Connector, 5 Contacts Cable Mount M12 Plug, Screw IP67

Do you need a sturdy connector to fit your on-site needs? The RS PRO M12 5-contact male connector achieves quick and easy wired connections in the field.

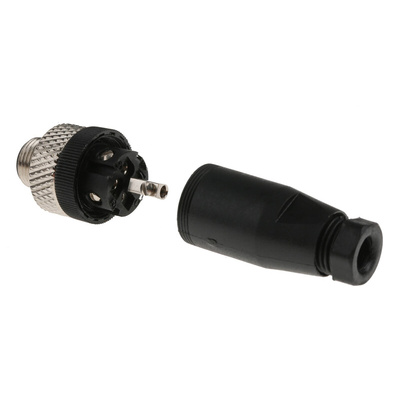

Eliminate the need for soldering or crimping with the screw-type termination that allows you to make wire connections even when you don't have access to equipment. Just strip the cable insulation, screw onto the adaptor, fully insert into the cable gland and securely seal the connections.

This connector offers insulation resistance of more than 100 MΩ to guard your equipment against damage and the gold-plated copper contacts protect it from rust. With an IP67 waterproof rating, The connector guarantees protection when immersed in up to one metre of water for 30 minutes as it has a waterproof rating of IP67. Part of the RS PRO series, this product is stringently tested for quality.

M12 connectors are perfect for automation and sensory applications needing uninterrupted data transmission.

Features and Benefits

• >=100 MΩ insulation resistance prevents electric shocks and protects equipment from damage due to accidental discharge
• IP67 waterproof rating guarantees protection in water up to 1 m for 30 minutes
• Plug socket
• Straight body orientation
• Operating temperature range from -25°C to +75°C
• Voltage rating of 60 V
• Current rating of 4 A
• 5 contacts
• Nylon housing
• Copper contacts
• Gold contact plating

RS PRO

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards
they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.

RS PRO Datasheet
