RS PRO Straight Male 4 way M12 to Unterminated Sensor Actuator Cable, 2m, Кабельная сборка

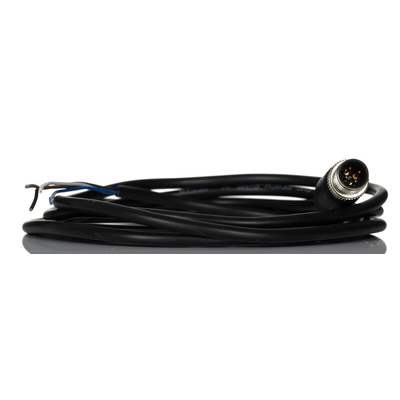

RS PRO Straight M12 to Unterminated Cable assembly, 4 Core 2 m Cable

This 4-core cable assembly from RS PRO offers a versatile solution for your industrial data transfer needs. It's two metres long and has one straight M12 connector and one unterminated end, so you can use it with the proper connector for your specific application.

This product has a polyurethane sheath for protection against industrial chemicals. What's more, a neoprene O-ring resists liquids and a brass nickel-plated coupling nut means a tight connection that's resistant to corrosion. It's also safe for use across at temperatures as low as -25°C or as high as +75°C.

This cable assembly meets electrostatic discharge standards ANSI/ESD S20.20:2014 and BS EN 61340-5-1:2007. With an IP67 rating, it's protected from water damage in one metre of water for up to 30 minutes.

This product is particularly useful for sensor and automation equipment. You'll find it used for applications such as process control and commercial electronics.

Features and Benefits

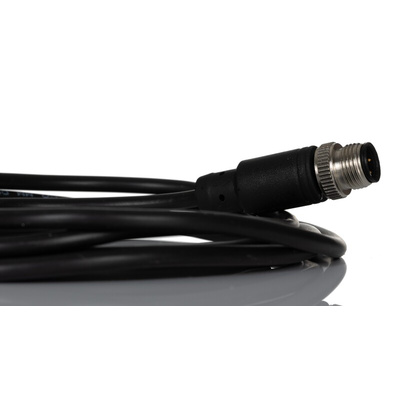

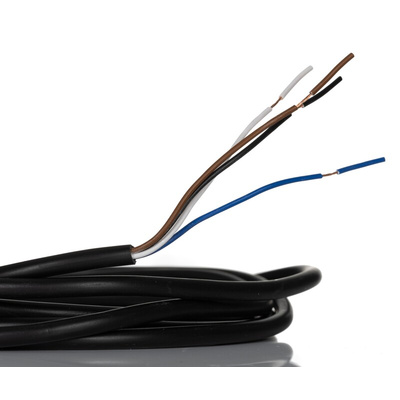

• One straight M12 male connector and one unterminated connector
• Brass nickel-plated coupling nut and gold-plated contacts for a secure, corrosion-free connection
• Insulation resistance of >
= 100 MΩ for electrostatic discharge protection
• Neoprene O-ring for liquid resistance
• Black polyurethane sheath
• 4-core cable
• Length of 2 m
• Outer diameter of 4.8 mm
• Cross-sectional area of 0.34 mm²
• AWG rating of 22
• Unshielded cable
• IP67 rating for protection in 1 m of water for up to 30 mins
• Minimum operating temperature of -25°C
• Maximum operating temperature of +75°C
• Voltage rating of 250 V
• Current rating of 4 A
