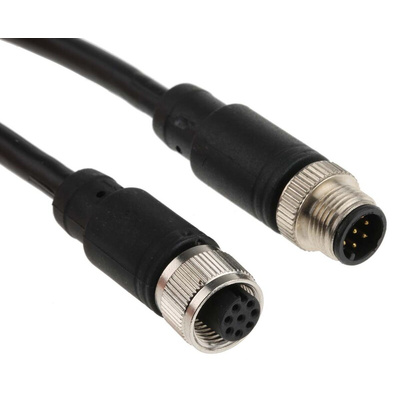

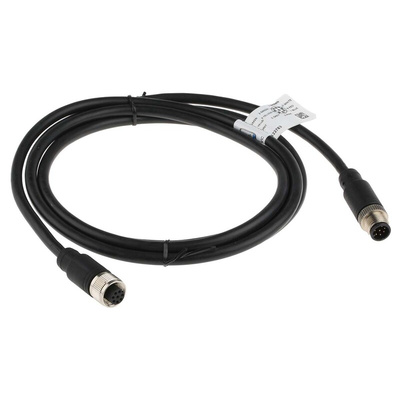

RS PRO Straight Female 8 way M12 to Straight Male 8 way M12 Sensor Actuator Cable, 2m, Кабельная сборка

RS PRO Straight M12 to Straight M12 Cable assembly, 8 Core 2 m Cable

Use this trusty 8-core connector cable with your automation or sensor equipment for effective data transferral. Ideally suited for commercial electronics and process control environments, its sturdy design makes it popular in a wide range of industrial settings.

This 2-metre cable has a voltage rating of 30 V and an outer diameter of 6.4 mm. It's fitted with two straight M12 connectors for a secure connection. One connector is a socket and the other end is a plug. The cable is safe to use at temperatures ranging from -25°C to +70°C.

There's a neoprene O-ring fitted to keep out liquids and a brass nickel-plated coupling nut to resist both corrosion and vibrations. The cable is protected by a sturdy polyurethane sheath.

Part of the RS PRO range, it's been tried and tested for quality. It complies with ANSI/ESD S20.20:2014 and BS EN 61340-5-1:2007 standards on electrostatic discharge safety.

Features and Benefits

• Straight M12 connectors provide a secure connection
• One socket (female) and one plug (male) connector
• High insulation resistance of at least 100 MΩ protects equipment against electrostatic discharge
• Neoprene O-ring keeps out liquids
• Nickel-plated brass coupling nut secures the connection and resists corrosion
• Eight contacts in each of the two connectors
• 8-core cable
• Length of 2 m
• Outer diameter of 6.4 mm
• Cross-sectional area of 0.25 mm²
• AWG rating of 24
• Unshielded cable
• Polyurethane (PUR) sheath with an outer sheath of PVC
• Operating temperature range from -25°C to +75˚C
• Voltage rating of 30 V
• IP67 waterproof rating means it can be submerged in a metre of water for 30 mins
• Current rating of 2 A
