Recom Switching Power Supply, RACM100-48S, 48V dc, 2.09A, 100W, 1 Output, 85 → 264V ac Input Voltage, Источник питания

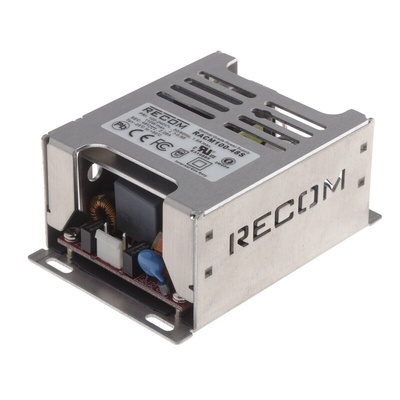

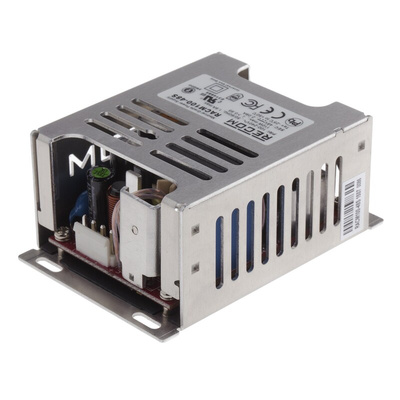

100W Switch Mode Medical Enclosed Power Supply - RACM100 Series

The Recom RACM100 Series is a range of medical power supplies with 2 x MOPP safety approvals. These enclosed AC-DC converters are great where space is an issue, with their compact 3x2 inches package. The RACM100 enclosed power supplies feature a universal input voltage range from 85 to 264Vac, 4kVac isolation and require no minimum load. The AC-DC converters come with a fully protected range of output voltages. The RACM100 series of enclosed power supplies also feature BF rated outputs with less than 100μA leakage current and a built-in class B EMI filter. These single output AC-DC converters are certified to medical safety standards IEC/ES/EN-60601-1 3rd edition.

2MOPP/250Vac
Suitable for built in Class II Applications
Wide Input Voltage Range (85-264Vac)
Low Leakage Current (˂75μA)
5000m Operation
Active Power Factor Correction

Standards

EN-55011, EN-55022, ES-60601, IEC/EN-60601

Approvals

CE, FC, cULus, UL, 2MOPP

Switch Mode - Recom, RACM Series

RACM100 Data Sheet
