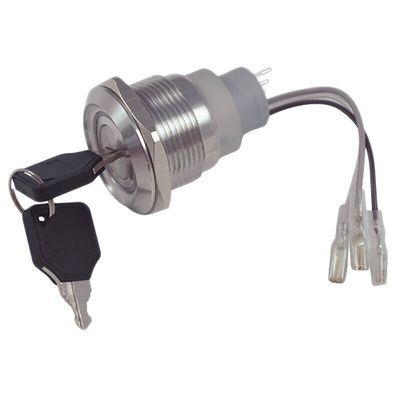

RS PRO IP40 Key Switch, SPDT, 5 A 2-Way, Выключатель с ключом

RS PRO IP40 2-Way Key Switch, Single Pole Double Throw (SPDT), 5 A

Restrict access to your equipment and keep your workspaces secure with this RS PRO key switch. It comes with two keys, so you can keep a spare or give two separate users access. To help monitor your systems more easily, the switch features a LED (light-emitting diode) that flashes green when it's in the open position, and red when it's in the closed position.
The switch case has an Impact Protection (IK) rating of IK03, meaning it can withstand a 0.25 kg mass dropped from a height of 140 mm. This means it's well-suited for installation in public areas as it can resist knocks and bumps. These switches are frequently used in applications where it's necessary to control two different circuit boards with one switch.

Features and Benefits

• Round bezel
• Stainless steel case
• Contact current rating of 5 A
• Silver contact material
• Depth behind panel of 37 mm
• Ingress Protection (IP) rating of IP40
• Mechanical life of 50,000 operations
• Two positions
• Latching switch operation
• Voltage rating of 250 V AC and 30 V DC
• Operating temperature range of -20°C to +55°C
• Key index angle of 90°
• Single Pole Double Throw (SPDT) contact configuration
• Solder terminals
• Standards met include US (UL) and Canadian (cUL) Underwriters' Laboratories, Verband Deutscher Elektrotechniker (VDE) and European Norms Electrical Certification (ENEC)

RS Pro Datasheet
