RS PRO IP40 Key Switch, DPDT, 5 A 2-Way, Выключатель с ключом

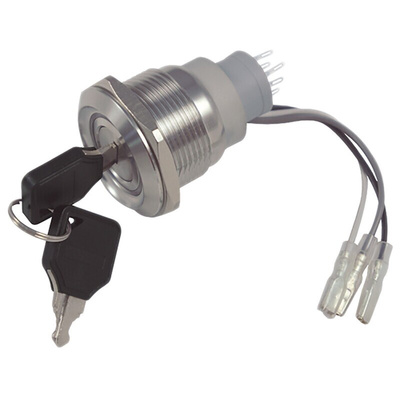

RS PRO IP40 2-Way Key Switch, Double Pole Double Throw (DPDT), 5 A

If you need to restrict access to your equipment, use this RS PRO key switch to keep your workspaces secure. A switch like this one is often used in applications where it's necessary to control two different circuit boards with one switch.


The key switch comes supplied with two keys, so you can either keep a spare or grant access to two people. It features a LED (light-emitting diode) that flashes green when it's in the open position and red when it's in the closed position, making it easier to monitor your systems.


This component has been tested by engineers for safety and efficacy. Thanks to the switch case's Impact Protection (IK) rating of IK03, it can endure impacts of 0.25 kg dropped from a 140 mm height. This makes it a good choice for installation in public areas, as it's protected against bumps or knocks.

Features and Benefits

• Round bezel


• Stainless steel case


• Contact current rating of 5 A


• Silver contact material


• Depth behind panel of 48.5 mm


• Ingress Protection (IP) rating of IP40


• Mechanical life of 50,000 operations


• Two positions


• Latching switch operation


• Voltage rating of 250 V AC and 30 V DC


• Operating temperature range of -20°C to +55°C


• Key index angle of 90°


• Double Pole Double Throw (DPDT) contact configuration


• Solder terminals


• Standards met include US (UL) and Canadian (cUL) Underwriters' Laboratories, Verband Deutscher Elektrotechniker (VDE) and European Norms Electrical Certification (ENEC)
