RS PRO Selector Switch - (on-on), Illuminated 2 Positions, Поворотный переключатель

RS PRO 90° Rotary Switch

This anti-vandal RS PRO rotary switch is a good option for machines used by members of the public. It's made with a strong stainless steel casing and has a high impact resistance rating of IK02, so it can withstand heavy use. Thanks to the front panel's Ingress Protection (IP) rating of IP67, it can be used where dust particles and water are present. It's suitable in outdoor and urban settings and on panels that require regular cleaning.
This component is illuminated and has a handy direction arrow to simplify operation. This rotary switch has been tested for durability, so you can expect a long mechanical lifespan of 50,000 cycles without load.

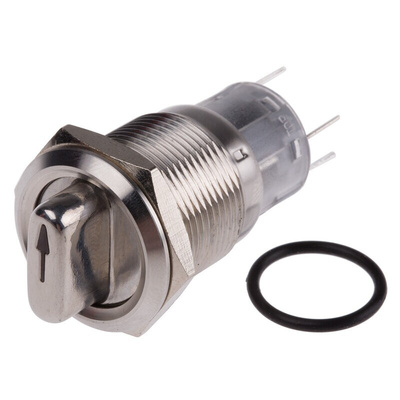

A nut and panel sealing O-ring are included with this product, ready for installation. This type of rotary switch is useful on self-service, dispensing and vending machines in spaces such as train stations and hospitals.

Features and Benefits

• Red actuator colour
• Angle of throw of 90º
• Stainless steel case material
• On-On contact configuration
• Contact current rating of 5 A at 250 V AC
• Silver contact material
• Dimensions of 39 (depth) x 22 mm (diameter)
• Illuminated
• IP67 rated
• Operating temperature range of -20°C to +55°C
• Mechanical life of 50000 cycles
• Mounting hole size of 19.2 mm
• Front panel mounting type
• Two switch positions

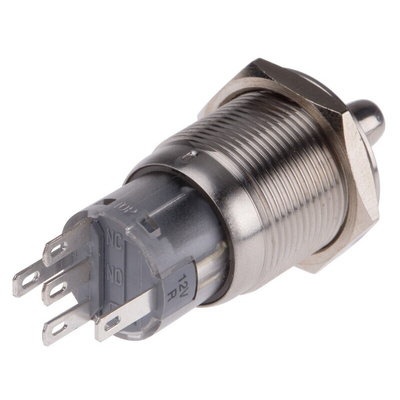

• Quick-connect, solder terminal type
• Voltage rating of 12 V
