RS PRO Selector Switch - (on-on), Illuminated 2 Positions, Поворотный переключатель

RS PRO 90° Rotary Switch, 2 Position On-On, 5 A at 250 V AC, Quick-Connect, Solder

Looking for an anti-vandal switch for machines used by members of the public? Choose this one from RS PRO. It has a strong stainless steel casing and a high impact resistance rating of IK02, so it can withstand heavy use. Thanks to the front panel's IP67 rating, it can be used in wet and dusty environments, as well as in outdoor and urban settings and on panels that require regular cleaning.

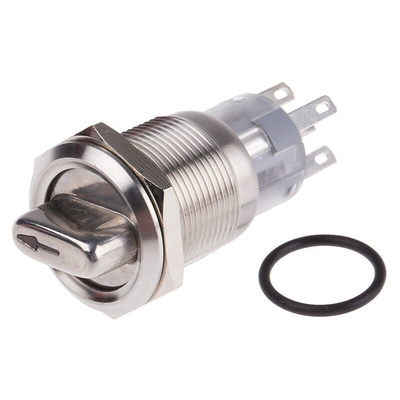

This part has a mechanical lifespan of 50,000 cycles without load, so it's built to last and requires little maintenance. To simplify operation, the switch face has a handy direction arrow so you can always be sure it's in the right position. A panel sealing O-ring and nut are included with this switch, so it's ready to install. This type of rotary switch is often used on dispensing, vending and self-service machines in public areas such as hospitals and train stations.

Features and Benefits

• Red actuator colour


• Angle of throw of 90°


• Stainless steel case material


• On-On contact configuration


• Contact current rating of 5 A at 250 V AC


• Silver contact material


• Dimensions of 39 (depth) x 22 mm (diameter)


• Illuminated


• Ingress Protection (IP) rating of IP67


• Operating temperature range of -20°C to +55°C


• Mechanical life of 50,000 cycles


• Mounting hole size of 19.2 mm


• Front panel mounting type


• Two switch positions

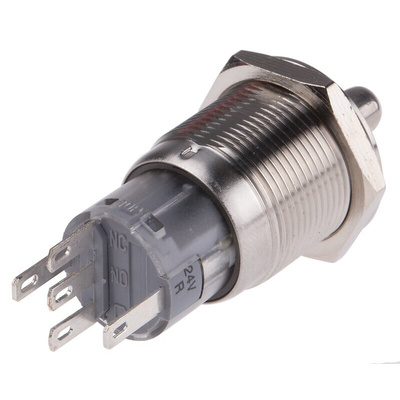

• Quick-connect, solder terminal type


• Voltage rating of 24 V
