RS PRO IP40 Key Switch, DPDT, 5 A 3-Way, Выключатель с ключом

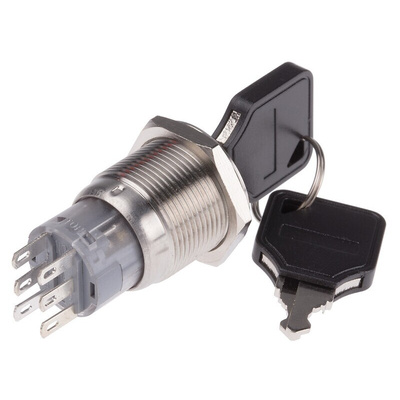

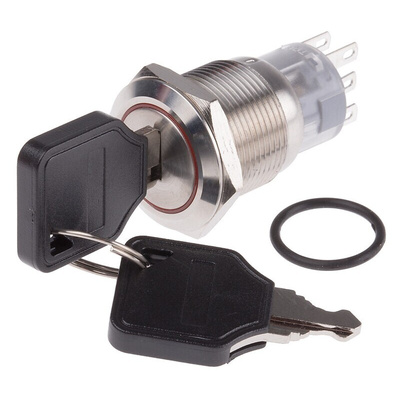

RS PRO IP40 3-Way Key Switch, Double Pole Double Throw (DPDT), 5 A

Need a secure way to activate or deactivate your equipment? This key switch from RS PRO is a simple, effective way to do just that. It can be wired into your circuitry to restrict access to systems such as industrial machinery, electrical grids and construction equipment.


The component is fitted with a sturdy stainless steel front panel to reduce damage from vandalism. It comes with two keys, so you can keep a spare or give access to more than one person.


This product has contacts that are intended for soldering to ensure a firm connection. The switch's stainless steel material is also rust-proof and resistant to corrosion. This means the switch will require minimal maintenance and stay in good working condition for longer.

Features and Benefits

• Round bezel


• Stainless steel case


• Contact current rating of 5 A


• Silver contact material


• Depth behind panel of 36.5 mm


• Operating temperature range of -20°C to +55°C


• Latching switch operation


• Key index angle of 45°


• Voltage rating of 250 V AC and 30 V DC


• Ingress Protection (IP) rating of IP40


• Mechanical life of 50,000 operations


• Three positions


• Double Pole Double Throw (DPDT) contact configuration


• Solder terminals


• Standards met include US (UL) and Canadian (cUL) Underwriters' Laboratories and Conformité Européenne (CE)

RS Pro Datasheet
