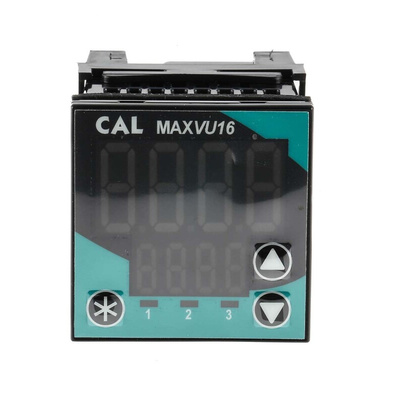

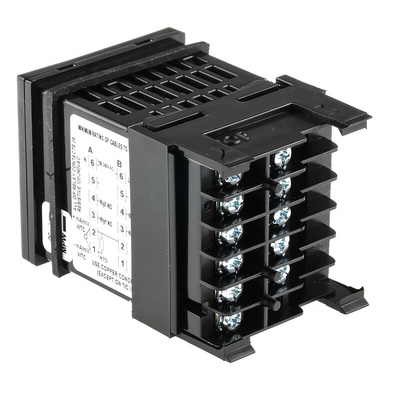

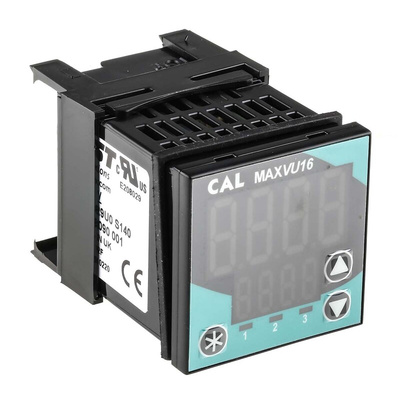

MV160MRR021U0, CAL MAXVU16 1/16 DIN PID Temperature Controller, 48 x 48mm 1 Input, 2 Output Relay, 110 → 240 V ac Supply Voltage, Регулятор температуры

CAL Temperature Controller

The CAL MAXVU16 series temperature controller has a supply voltage rating ranging from 100VAC to 240VAC. This controller has a width of 48mm and a height of 48mm (1/16 DIN) device. The controller has 2 relay output. It is an easy-to-install device that is fast to program with improved display visibility. This provides an affordable solution for applications where primary temperature control functions such as heat only or heat/cool are needed. Typical applications include packaging processes such as sealers and many more.

Features and Benefits

2 process alarms- high/low, deviation or band
2 x 4 digit display and 3 output status LEDs
3 button operation
Front panel configuration or PC configuration software
Good performance in sunlight
High visibility 18mm display (10.2mm lower display)
Quick set-up menu with top 10 configuration parameters
RS485 Modbus RTU communications
Thermocouple, PT100 or linear DC sensor input
User can set-up the controller in 60 seconds
Wide viewing angle

Certifications

CE certified
EN61010-1
EN61326 (susceptibility and emissions)
Installation category II
IP65 rated
UL61010-1 pollution degree 2
