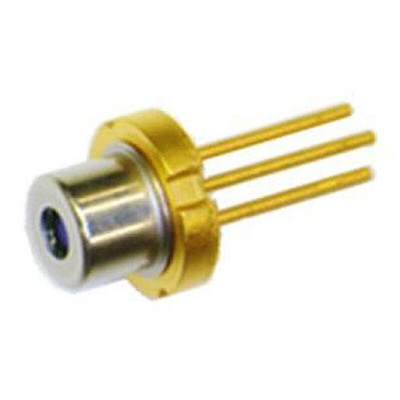

Panasonic LNCT28PS01WW Infrared, Red Laser Diode 665 (Red) nm, 791 (IR) nm 100 (Red) mW, 200 (IR) mW, 3-Pin TO-56, Лазерный диод

8775248
Номер производителя: LNCT28PS01WWПроизводитель: Panasonic
Цена за шт.
11877.00 руб. (С НДС) *

Срок поставки: 4-6 недель

+

* УТОЧНЯЙТЕ ВОЗМОЖНОСТЬ, ЦЕНУ И СРОК ПОСТАВКИ, В СВЯЗИ С ОГРАНИЧЕНИЕМ ЭКСПОРТА ТОВАРОВ ИЗ СТРАН ЕС И ВЕЛИКОБРИТАНИИ

LNCT Dual Wavelength Red/IR Laser Diodes, Panasonic

The LNCT range of laser diodes by Panasonic are dual wavelength laser diodes that offer a single chip solution, incorporating both red and infrared (IR) lasers on a low profile package.

Features

Single chip solution
Both red and infrared (IR) wavelengths on board
Stable output power at high temperatures
Small, flat package size
RoHS compliant

Benefits

Eliminates the need for multiple components
High accuracy in laser beam spacing
20-30% more efficient than conventional laser diodes
Small size provides design flexibility

Typical Applications

Optical disk drive
Laser distance sensor
Barcode reader
Flow cytometer

Warning

This product is a class IIIb laser according to IEC60825-1. Safety protection is necessary when laser beam is being radiated. Serious eye damage can occur if any laser of 1mW or above is pointed directly at the eye.

Laser Diodes, Panasonic

Техническая спецификация
pdfApplication Note
pdfDatasheet
Высота:
3.95мм
Выходная оптическая мощность:
100 (Красный) мВт, 200 (IR) мВт
Диаметр:
5.6мм
Диапазон напряжения питания:
Максимум 3 В
Количество штырьков:
3
Максимальное напряжение питания:
Максимальный рабочий ток:
180 (Красный) мА, 275 (IR) мА
Обратное напряжение:
1.5В
Параллельная расходимость пучка FWHM:
11.5 (IR) °, 13 (Красный) °
Перпендикулярная расходимость пучка FWHM:
19 / 19.5°
Пиковая длина волны:
665 (Красный) нм, 791 (IR) нм
Размеры:
5.6 (диаметр) x 3.95мм
Серия:
LNC
Тип монтажа:
Сквозное отверстие
Тип упаковки:
TO-56
Цвет лазера:
Инфракрасный, Красный
