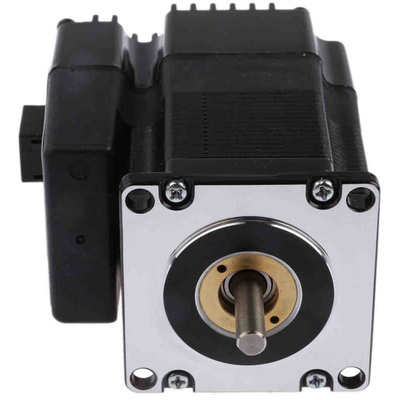

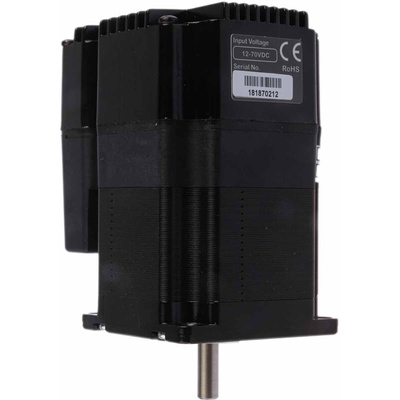

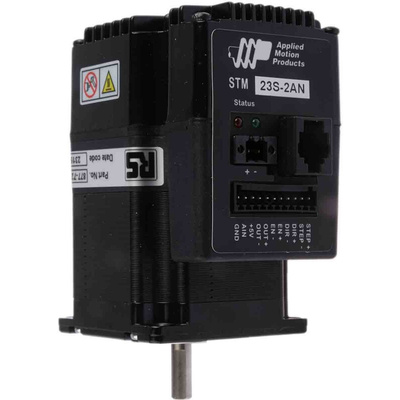

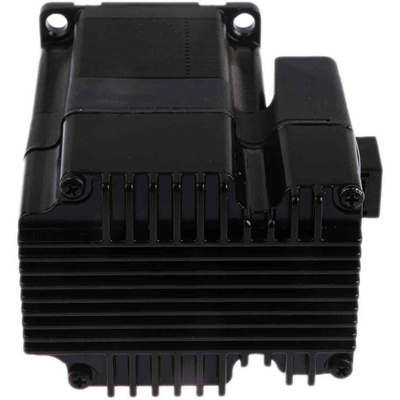

STM23S-2AN, Applied Motion Systems STM Series Dual Hybridge Stepper Motor, 0.88Nm Torque, 12 → 70 V, 1.8°, 23mm Frame,, Шаговый двигатель

Integrated Steppers STM23S

The STM23S is an integrated Drive and Motor, fusing step motor and drive technologies into a single device, offering savings on space, wiring and cost over conventional motor and drive solutions.

Drive + Motor + Control in one unit
4 quadrant controller
Dynamic Current Control
Anti-Resonance
Torque Ripple Smoothing
Microstep Emulation
Stall Prevention/Detection
NEMA 23 frame size
Input voltage 12-70 Vdc
3 digital input, 1 analog input
1 digital output
RS232 interface

Operation Mode:
Step and direction
CW/CCW pulse
A/B quadrature pulse
velocity (oscillator, joystick)
streaming commands (SCL)
SiNet Hub compatible
