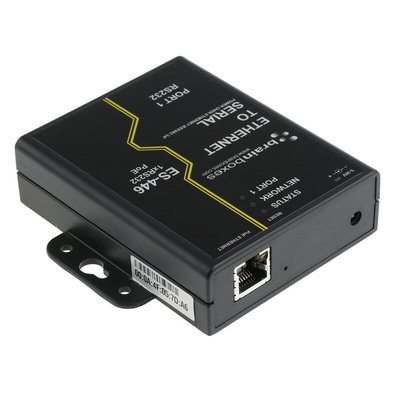

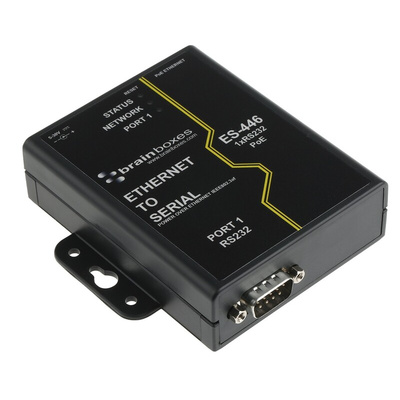

ES-446, Brainboxes Serial Device Server, 1 Ethernet Port, 1 Serial Port, RS232 Interface, 1Mbit/s Baud Rate

Brainboxes PoE Ethernet to Serial Device Server

The Brainboxes PoE Ethernet to serial device server with power over Ethernet is a state-of-the-art device that provides access to 1 or 2 serial ports. Data transfer rates up to 1,000,000 baud, coupled with 1Mbit/s line drivers, deliver uncompromising performance. The power over Ethernet PoE uses IEEE 802.3af standard. The ES range provides simple, instantly networked serial ports. A web interface allows secure configuration and control of the serial ports over a local network or the internet using any browser. This device can be accessed via TCP/IP sockets from any networked device like an Android tablet, PC, or phone.
Different versions are available:
1 port RS232, stock no. 877-7253
2 port RS232, stock no. 877-7256
1 port RS422/485, stock no. 901-1337
2 port RS422/485, stock no. 901-1346

Features and Benefits

1 Port RS-232 with power over Ethernet IEEE802.3af
Ethernet to serial device server
User friendly interface, simple to use, and powerful in operation
Serial port tunnelling allows serial cable replacement over any distance, no software required
DB9- 9 Pin male connector
Optional DIN rail mounting kit
Quick, safe, and simple to install
No software required

Applications

Modem
POS
Printers
Industrial equipment

Certifications

CE
IP30 rated

ES-446 Data Sheet
